Sinoboom 1018RD

Sinoboom 1018RD

Sinoboom 1018RD

Specification

Make
Make
Sinoboom
Model
Model
1018RD
Working Height
Working Height
12m / 39ft 5in
Platform Height
Platform Height
10m / 32ft 10in
Min Weight
Min Weight
4,110.00kg / 9,083lbs
Safe Working Load
Safe Working Load
450.00kg / 995lbs

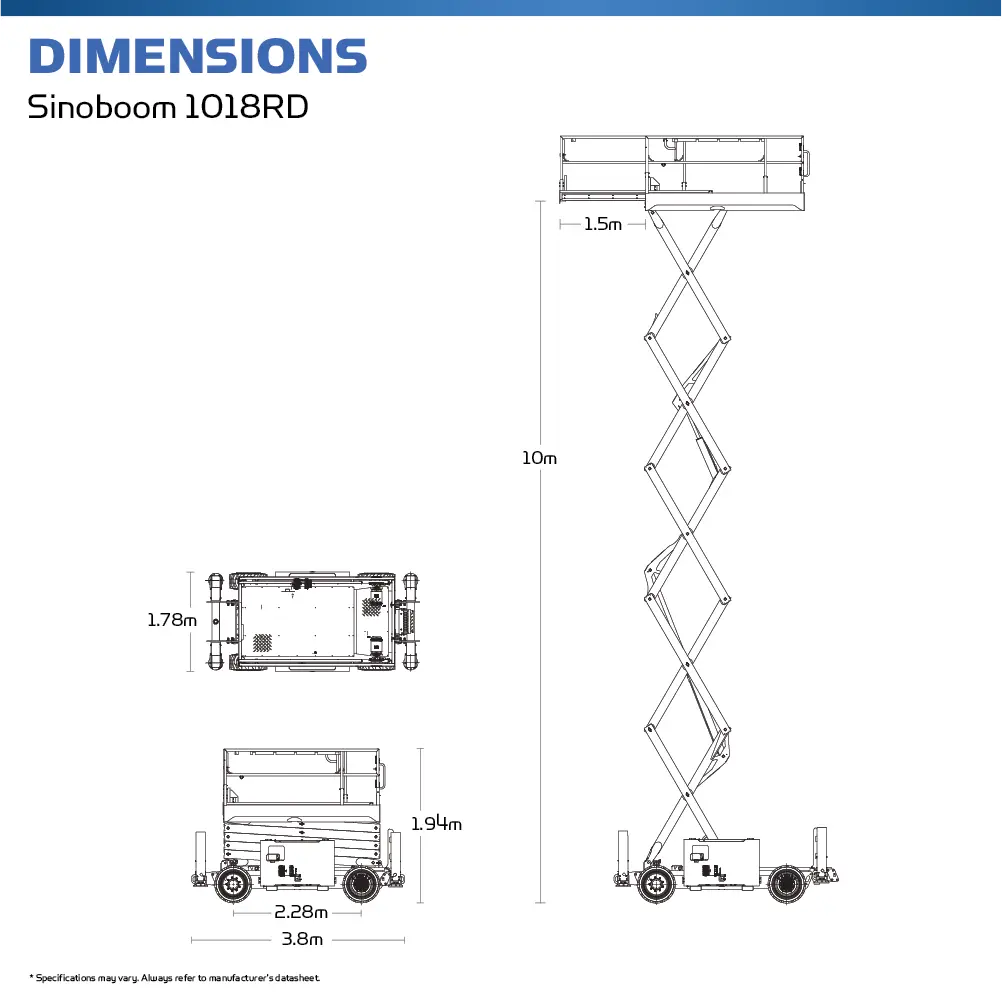

Machine Length
Machine Length
3.8m / 12ft 6in
Machine Width
Machine Width
1.78m / 5ft 11in
Machine Height
Machine Height
2.56m / 8ft 5in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
2.11m / 7ft
Gradeability
Gradeability
35%

Interested in hiring a Sinoboom 1018RD?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

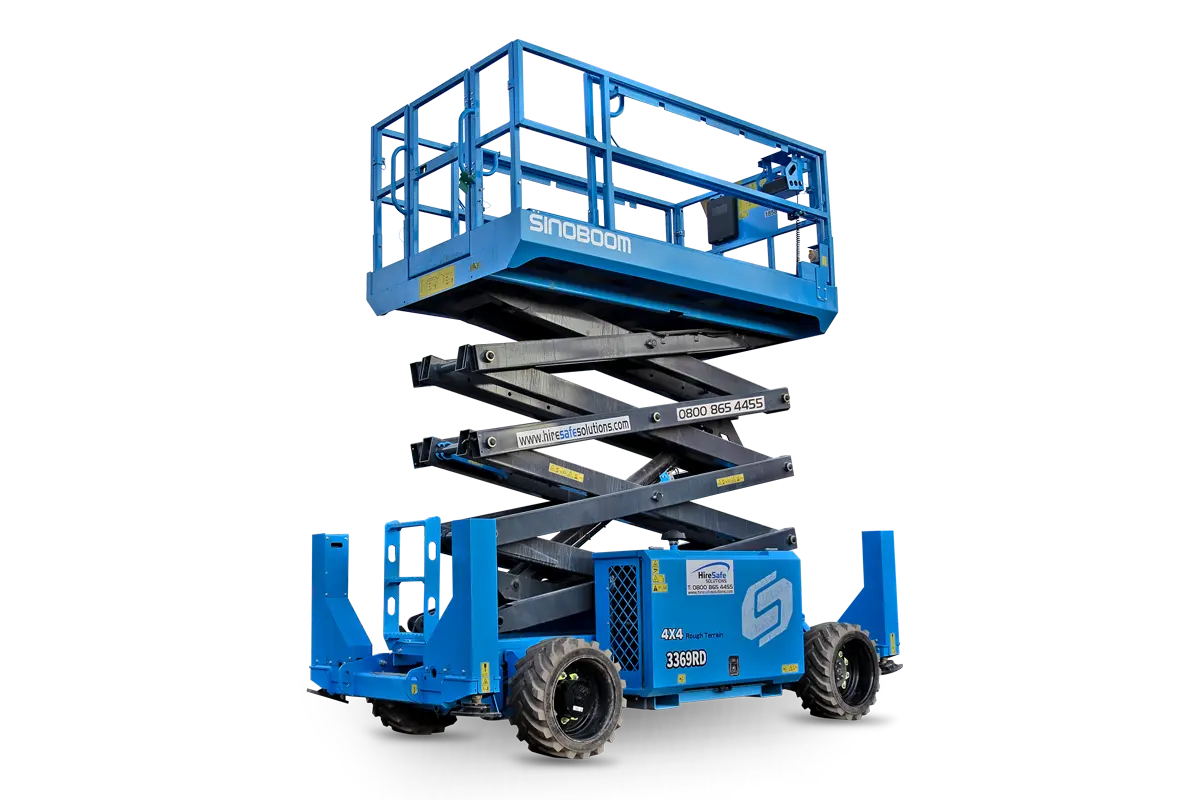

Sinoboom 1018RD (3369RD) Diesel Scissor Lift

The Sinoboom 1018RD - also known as the 3369RD - is a rough terrain diesel scissor lift that can safely lift up to 450kg to a maximum working height of 12 metres. It features a powerful four-wheel drive system and rough terrain tyres that are perfect for navigating the challenging terrains found on construction sites.

This machine features a spacious platform deck measuring 2.8 metres in length x 1.6 metres in width which can lift up to 4 occupants when working indoors and 2 when outdoors. It also comes equipped with a one-way extension deck providing an additional 1.5 metres of platform length.

The Sinoboom 1018RD has a 35% gradeability, oscillating axle for stable movement, and features automatic outriggers with one-click levelling, making easy work of uneven surfaces and terrains.



Key Features of the Sinoboom 1018RD

  • 4WD × 2WS
  • Forklift pockets and lifting points
  • Proportional control
  • Emergency lowering system
  • Tilt protection system
  • Foldable guardrail
  • Foam-filled non-marking tires
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Drivable at full height



Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)



Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • General building maintenance

The Sinoboom 1018RD comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Stage V Engine

Stage V Engine
Power to Platform

Power to Platform
Four Wheel Drive

Four Wheel Drive
Non-Marking Rough Terrain Tyres - SL

Non-Marking Rough Terrain Tyres - SL
Self-Levelling Jacks

Self-Levelling Jacks
Oscillating Axles - SL

Oscillating Axles - SL
