LGMG SR1018D

LGMG SR1018D

LGMG SR1018D

Specification

Make
Make
LGMG
Model
Model
SR1018 D
Working Height
Working Height
11.7m / 38ft 5in
Platform Height
Platform Height
9.7m / 31ft 10in
Min Weight
Min Weight
3,950.00kg / 8,730lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs

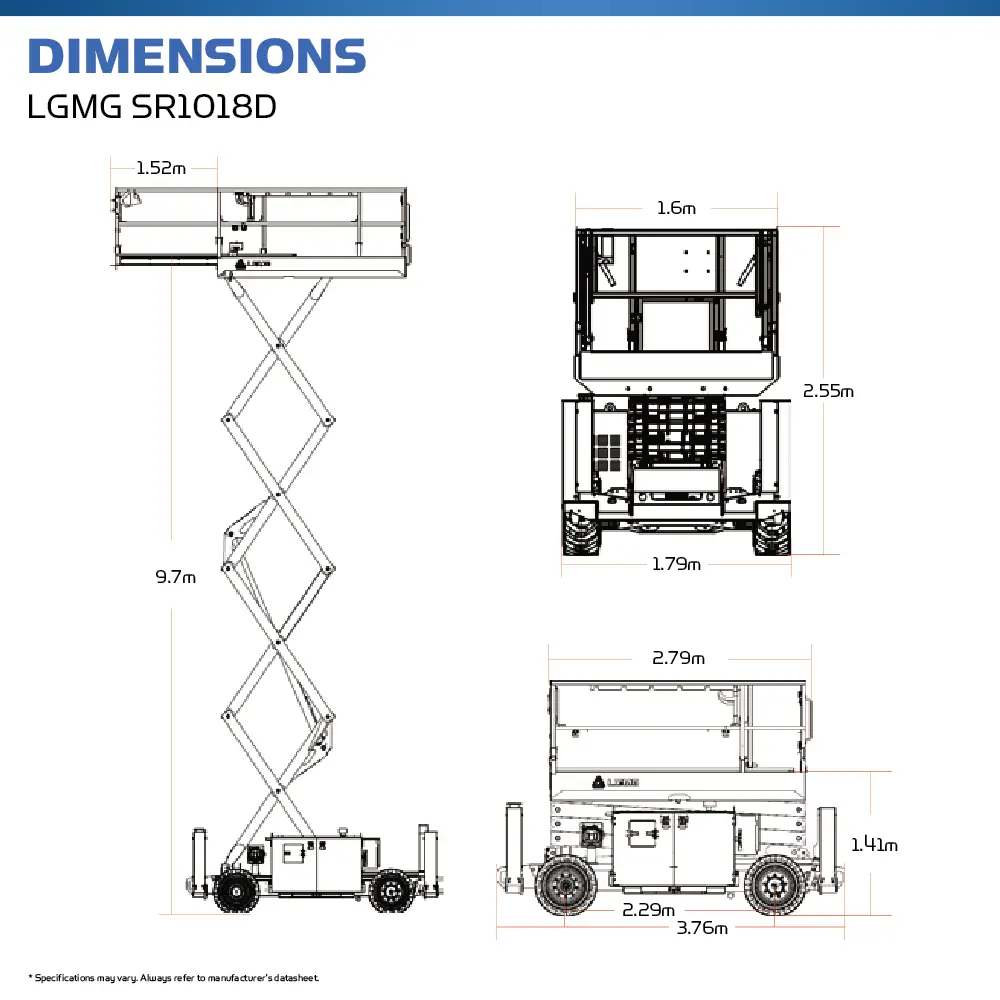

Machine Length
Machine Length
3.12m / 10ft 3in
Machine Width
Machine Width
1.79m / 5ft 11in
Machine Height
Machine Height
1.89m / 6ft 3in
Power Options
Power Options
Diesel, Electric/Battery
Turning Radius
Turning Radius
4.75m / 15ft 8in
Gradeability
Gradeability
35%

Interested in hiring a LGMG SR1018D?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

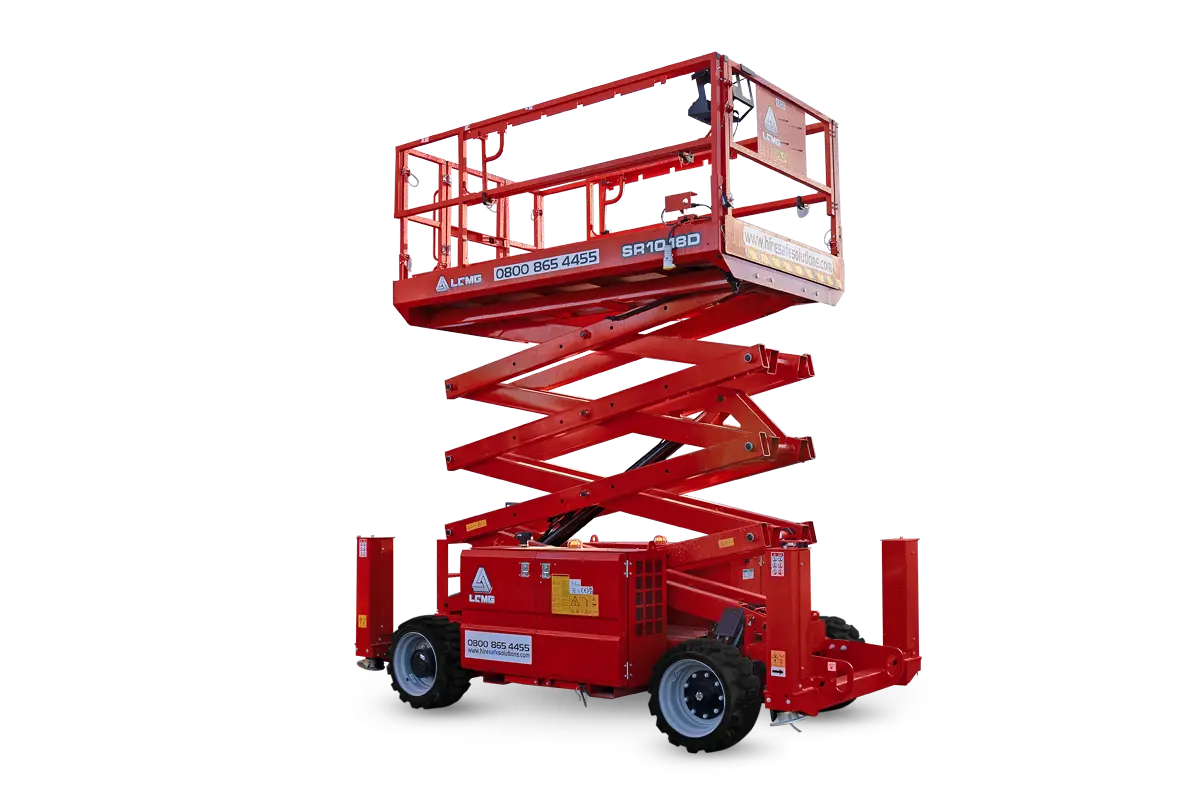

LGMG SR1018D Diesel Scissor Lift

The LGMG SR1018D rough terrain Scissor Lifts are specifically built for tough construction sites with four wheel drive and fantastic gradeability. High load capacities with compact design provide a great combination for the lager working area and great manoeuvrability through rough terrain job sites.

This machine also offers high capacity, large platforms with a compact design to maximise productivity. The powerful diesel engine and four wheel drive makes the LGMG SR1018D ideal for varying conditions. Its oscillating axels along with great gradeability provide excellent performance on rough terrain job sites. Optional hydraulic outriggers deliver better stability on uneven ground. and it also comes with an intelligent self diagnostic system for quick troubleshooting.

Key Features of the LGMG SR1018D

  • Larger work platform with high capacity offers great productivity
  • Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites
  • The overload system and motion alarm help the operator to complete the job in a much safer way
  • Pull-out engine tray for easy access and maintenance
  • On-board self-diagnosis system for easier and quick troubleshooting
  • Proportional control
  • Foldable guardrail
  • Emergency stop device
  • Manual brake release
  • Emergency descent
  • Oscillating axle
  • Self-lock entry gate
  • Tilt alarm with lift cut-out
  • Overload sensing system
  • All motions alarm Descent alarm with flashing beacon
  • Intelligent diagnostic system
  • Auto-leveling outriggers
  • RT Foam-filled tires

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • Façade work

The LGMG SR1018D comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Power to Platform

Power to Platform
Rough Terrain Tyres - SL

Rough Terrain Tyres - SL
Oscillating Axles - SL

Oscillating Axles - SL
Large Scissor Single Deck Extension

Large Scissor Single Deck Extension
