Genie GS1530

Genie GS1530

Genie GS1530

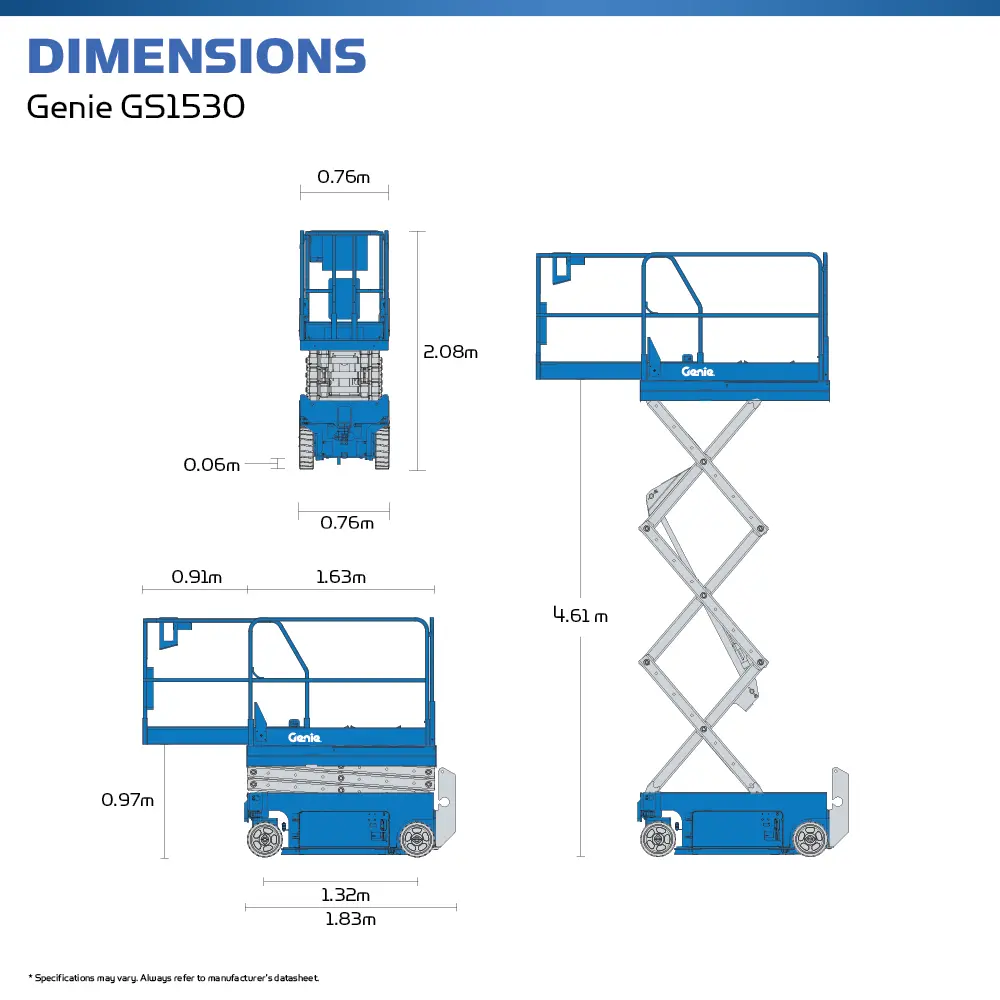

Specification

Make
Make
Genie
Model
Model
GS 1530
Working Height
Working Height
6.57m / 21ft 7in
Platform Height
Platform Height
4.57m / 15ft
Min Weight
Min Weight
1,257.00kg / 2,778lbs
Safe Working Load
Safe Working Load
272.00kg / 601lbs
Machine Length
Machine Length
1.83m / 6ft 1in
Machine Width
Machine Width
0.76m / 2ft 6in
Machine Height
Machine Height
1.73m / 5ft 9in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%

Interested in hiring a Genie GS1530?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

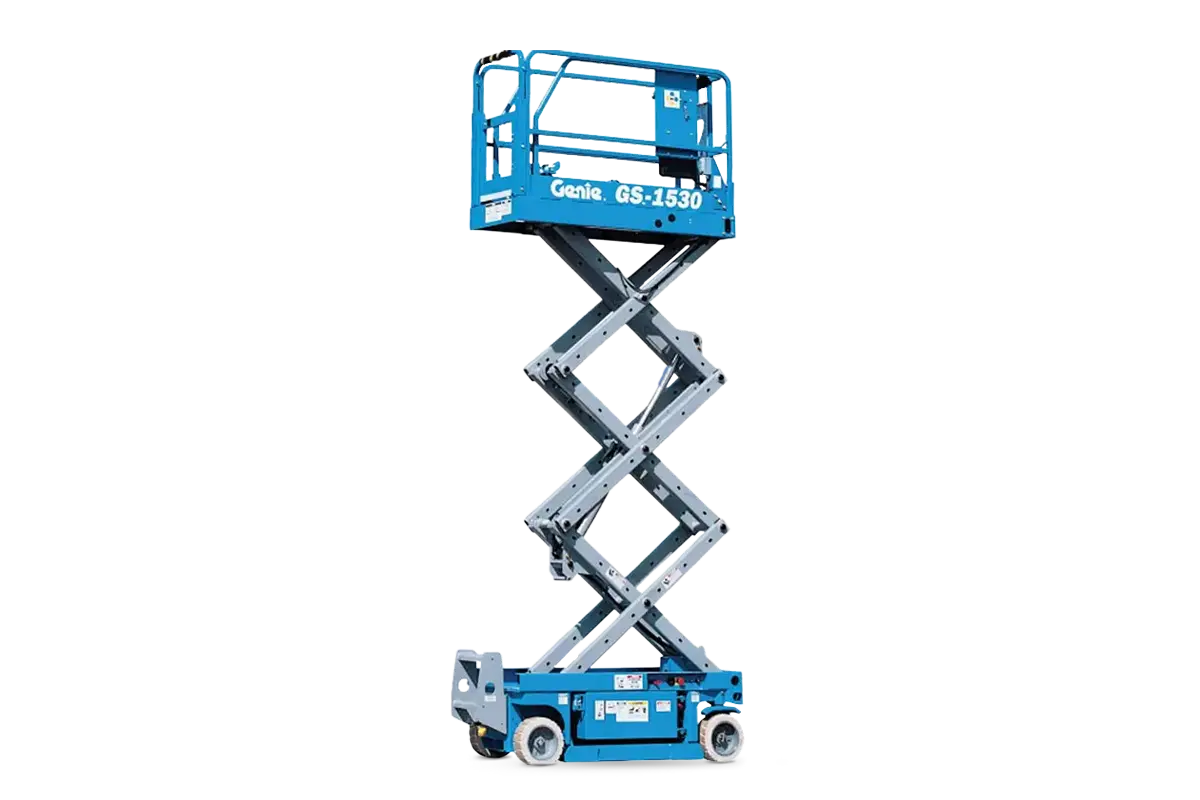

Genie GS1530 Electric Scissor Lift

The Genie GS1530 has a working height of 6.57m and is a very nippy and compact machine which is ideal for the confines of a production line. It is fully certified for outdoor use, especially in windy conditions of up to 12.5m per second. This machine is ideal for internal work in factories and warehouses and has also proven to be popular with mechanical and electrical contractors.

Key Features of the Genie GS1530

  • 1.63 x .74m steel platform
  • Folding rails with half-height swing gate
  • 0.91m extension deck
  • Drive at full height
  • Dual front wheel drive
  • SmartLink™ - dual zone control
  • Proportional lift and drive
  • Platform load sense system
  • Platform control guard
  • Universal 27A smart charger
  • Rear recessed charger receptacle
  • Up to 30% gradeability
  • Platform control with battery charge indicator and diagnostic display
  • On-board diagnostic system
  • AC power to platform
  • Lanyard attachment points
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Rear wheel multiple disc brakes
  • Front wheel hydraulic dynamic braking
  • Manual hydraulic brake release
  • Swing-out component trays
  • Solid non-marking tyres
  • Pothole guards
  • Tilt level sensor with audible alarm
  • Dual flashing LED beacons
  • Descent alarm
  • Electronic horn
  • Motion alarm
  • Lift Connect™ Telematics
  • Tech Pro™ Link compatible
  • 24V DC (four 6 V 225 Ah batteries)

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Genie GS1530 can be fitted-out with an assortment of accessories to increase productivity and safety on site.
