Magni RTH 6.26 SH

Magni RTH 6.26 SH

Magni RTH 6.26 SH

Specification

Make
Make
Magni RTH
Model
Model
6.26 SH
Lifting Height
Lifting Height
25.7m / 84ft 4in
Maximum Outreach
Maximum Outreach
22m / 72ft 3in
Min Weight
Min Weight
20,050.00kg / 44,311lbs
Lifting Capacity
Lifting Capacity
6,000.00kg / 13,260lbs

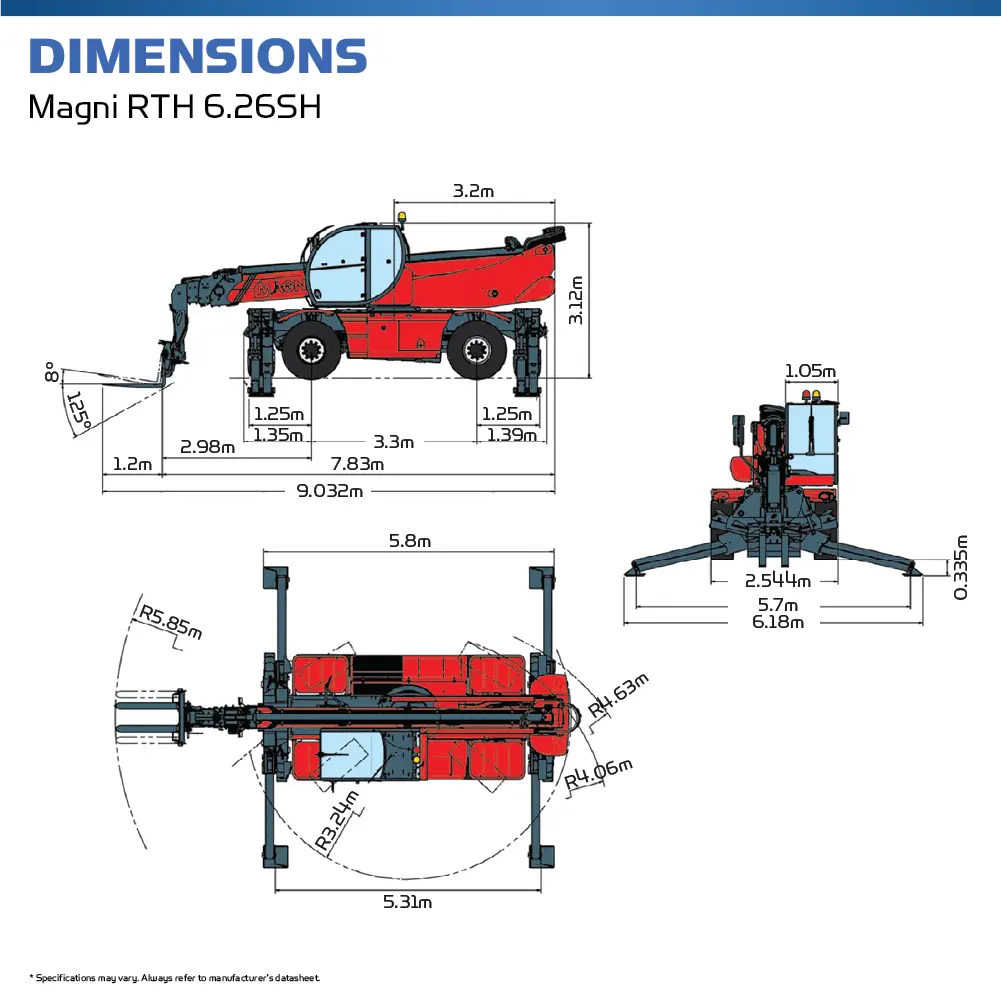

Machine Length
Machine Length
7.83m / 25ft 9in
Machine Width
Machine Width
2.54m / 8ft 5in
Machine Height
Machine Height
3.12m / 10ft 3in
Power Options
Power Options
Diesel
Gradeability
Gradeability
42%
Cage Rotation
Cage Rotation
360 degrees

Interested in hiring a Magni RTH 6.26 SH?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

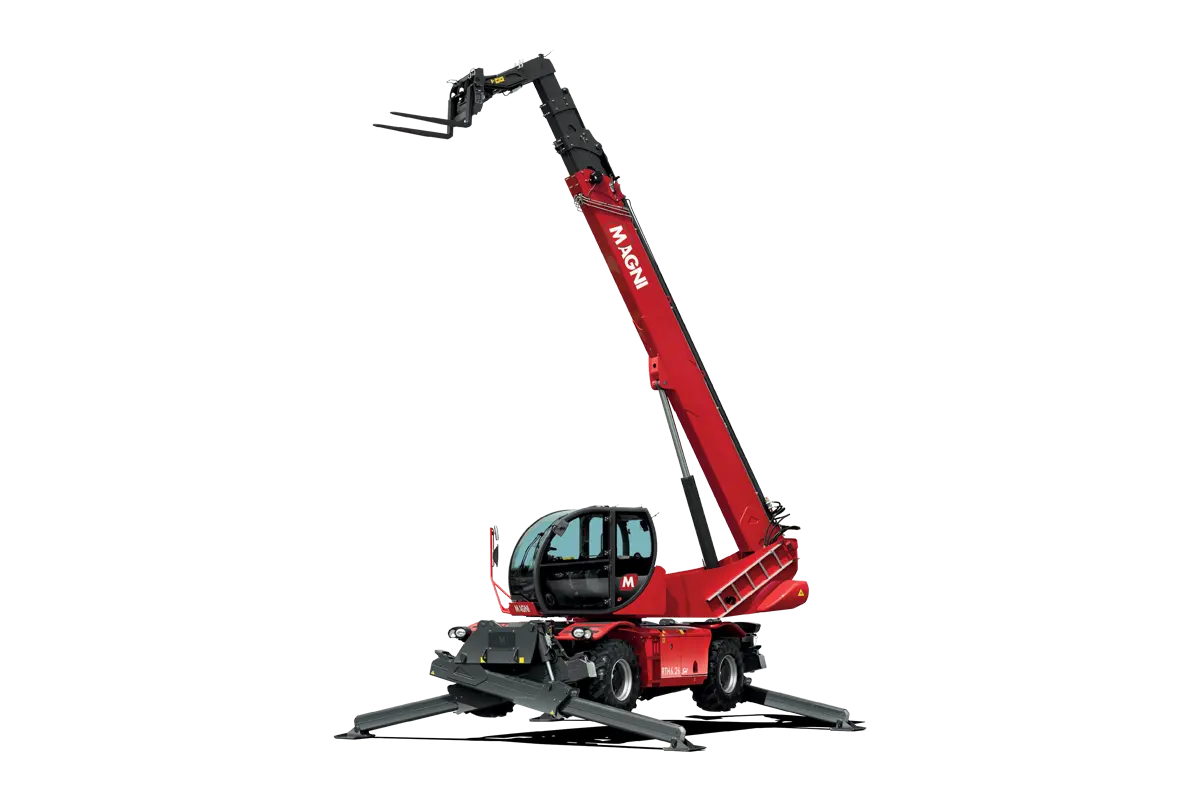

Magni RTH 6.26 SH Rotating Telehandler

The Magni RTH 6.26 SH Diesel Rotating Telehandler is a tough, high performance rotating telescopic handler capable of lifting loads up to a height of 26m, and is equipped with scissor stabilisers to ensure greater safety and stability during working maneuveres.

The scissor stabilisers are ideal even with limited space available, and when the machine is only partially stabilised, it is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. The Magni RTH 6.26nSH is also compatible with a huge range of accessories, thanks to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts. This telescopic handler is able to meet a wide range of applications in construction and industry.

Key Features of the Magni RTH 6.26 SH

  • “Easy access” system
  • Premium tilting seat with air suspension and headrest
  • Adjustable steering column
  • Analogue joypad
  • Adjustable sunblind
  • Heating
  • Air conditioning
  • FM/AM radio with USB and Bluetooth connectivity
  • Ambient LED lights
  • USB Type-A and Type-C (5V) inputs
  • Touchscreen, 12”
  • MCTS - Magni Combi Touch System on-board software
  • Automatic RFID tools recognition system
  • LMI - Load Moment Indicator LLD - Live Load Diagram
  • Onboard and remote integrated diagnostics
  • Reversing camera with image integrated in the MCTS
  • Q-Fit standard
  • Provision for platform
  • Advanced three-line CAN BUS system Automatic levelling system for outriggers Automatic front and rear wheel alignment
  • High-precision turret rotation motor by Liebherr Automatic parking brake
  • Mechanical battery cut-off in engine compartment
  • Electrical system: 24V - IP67

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Rotating Telehandlers here.

  • Agriculture
  • Building Maintenance
  • Construction
  • Defence
  • Events and Cinemas
  • Forestry
  • Heavy Logistics
  • Mining & Quarrying
  • Oil & Gas
  • Overhead power work
  • Steel Erection
