Genie GR26J

Genie GR26J

Genie GR26J

Specification

Make
Make
Genie
Model
Model
GR26J
Working Height
Working Height
9.85m / 32ft 4in
Platform Height
Platform Height
7.9m / 26ft
Maximum Outreach
Maximum Outreach
3.15m / 10ft 5in
Min Weight
Min Weight
2,650.00kg / 5,857lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs
Machine Length
Machine Length
2.82m / 9ft 4in
Machine Width
Machine Width
0.99m / 3ft 3in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
0.59m / 2ft
Gradeability
Gradeability
25%
Cage Rotation
Cage Rotation
140 degrees

Interested in hiring a Genie GR26J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

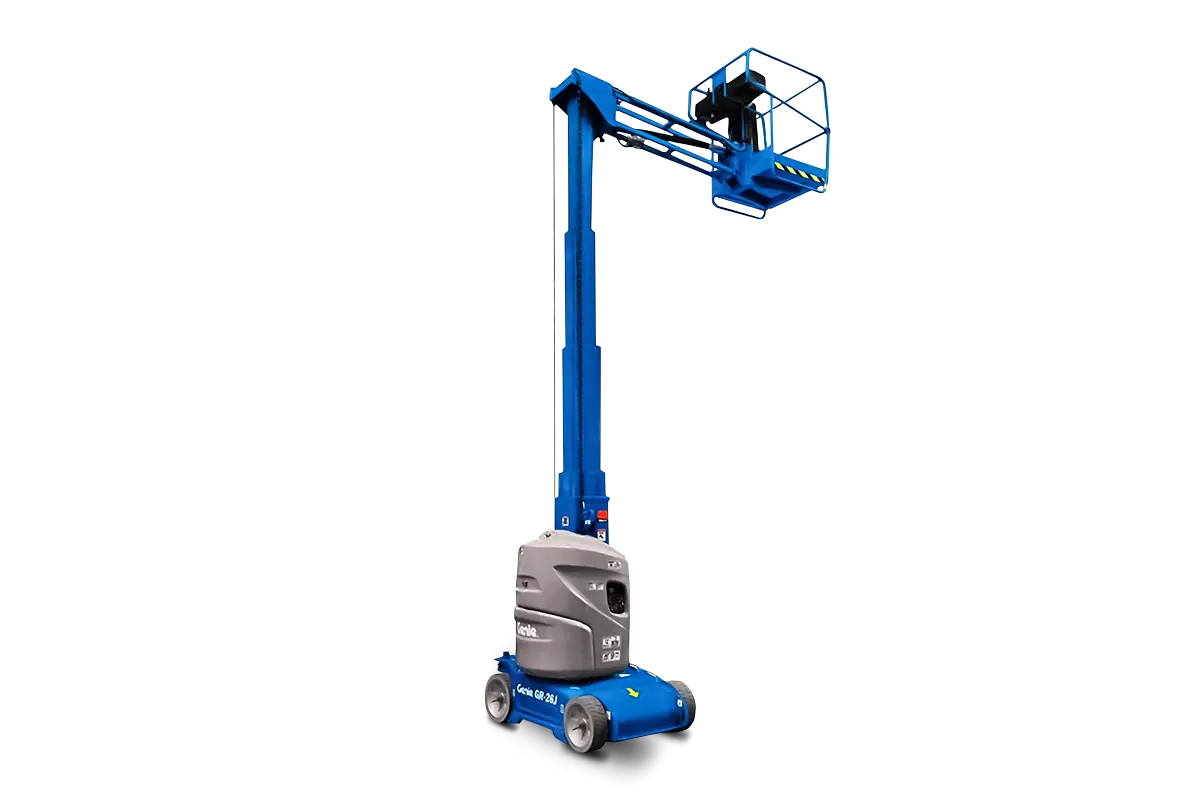

Genie GR26J Mast Boom

The Genie GR26J is a versatile, two-person machine which is well suited for increasing productivity in congested industrial areas, corridors and hallways with a width of only 0.99m.

This machine comes equipped with a rotating jib that provides an “up-and-over” maximum clearance of 6.7m, ideal for building and factory maintenance. The low weight of the Genie GR26J (2650kg) enables the machine to work on weight restricted areas and upper floor levels.

Key Features of the Genie GR26J

  • Hydraulic turntable rotation
  • Fully proportional lift and drive system
  • Drivable at full height
  • Low 0.15m platform entry height
  • Maintenance free rigid steel hydraulic mast
  • 99cm compact width
  • Low unit height of 1.99m
  • Low weight
  • Onboard diagnostic system
  • Direct electric rear wheel drive with electric parking brake
  • Front wheel steering
  • Brake release switch
  • Reinforced ABS chassis covers
  • Tie down attachments points
  • Overhead crane attachment points
  • Drive enable system
  • Horn
  • Tilt level sensor with audible alarm
  • Platform overload sensing
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Certified load sensor

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK and ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Mast Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • Facilities management
  • Mechanical engineering

The Genie GR26J can be fitted-out with an assortment of accessories to increase productivity and safety on site.
