Genie GR20J

Genie GR20J

Genie GR20J

Specification

Make
Make
Genie
Model
Model
GR 20 J
Working Height
Working Height
7.7m / 25ft 4in
Platform Height
Platform Height
5.7m / 18ft 9in
Maximum Outreach
Maximum Outreach
3.25m / 10ft 8in
Min Weight
Min Weight
2,250.00kg / 4,973lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs
Machine Length
Machine Length
2.95m / 9ft 9in
Machine Width
Machine Width
0.99m / 3ft 3in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Battery
Turning Radius
Turning Radius
0.59m / 2ft
Gradeability
Gradeability
25%
Cage Rotation
Cage Rotation
140 degrees

Interested in hiring a Genie GR20J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

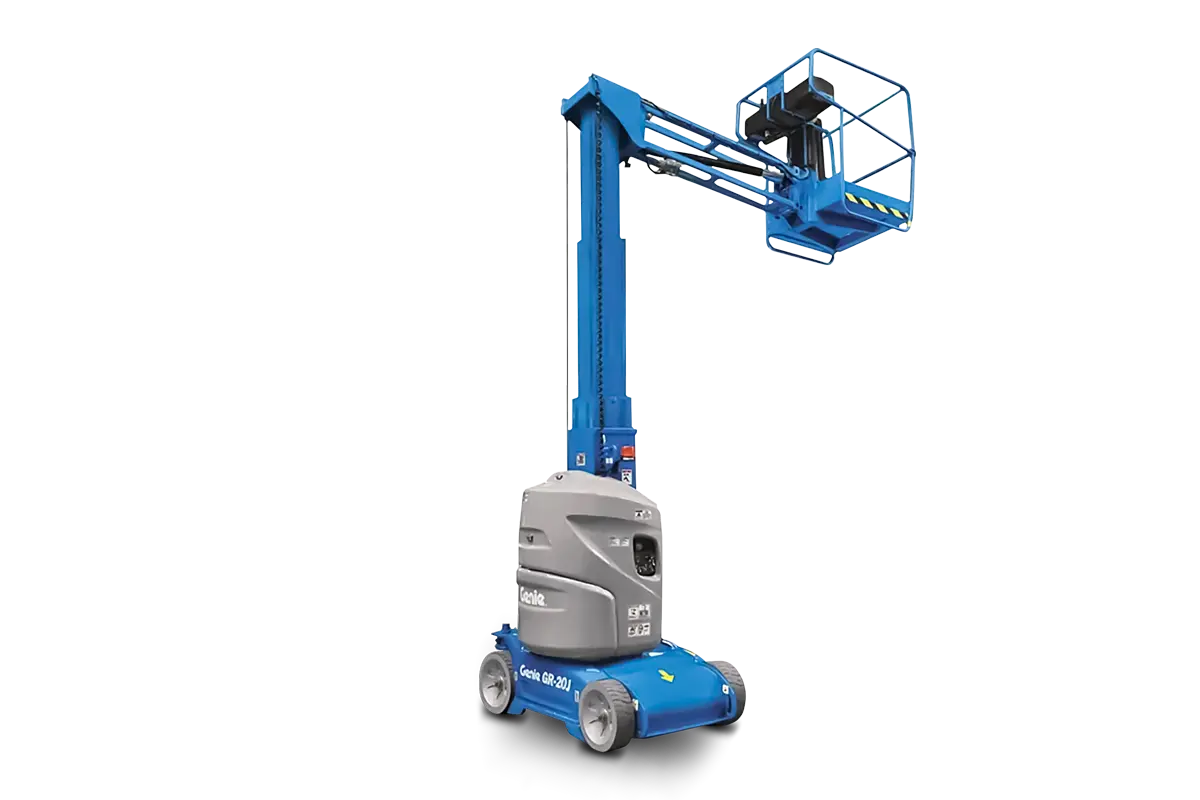

Genie GR20J Mast Boom

The Genie GR20J is a versatile, two-person machine suited for increasing productivity in congested industrial areas, corridors and hallways with a width of only 0.99m. Equipped with a unique jib that provides an “up-and-over” clearance, it has a working height of 7.7m and an outreach of 2.75m. The lightweight and compact dimensions of the Genie GR20J makes it ideal for building, factory maintenance and stock picking.

Key Features of the Genie GR20J

  • Hydraulic turntable rotation
  • Fully proportional lift and drive system
  • Drivable at full height
  • Maintenance free rigid steel hydraulic mast
  • Low unit height of 1.99m
  • Low weight
  • Onboard diagnostic system
  • Direct electric rear wheel drive with electric parking brake
  • Front wheel steering
  • Brake release switch
  • Reinforced ABS chassis covers
  • Tie down attachments points
  • Overhead crane attachment points
  • Drive enable system
  • Horn
  • Tilt level sensor with audible alarm
  • Platform overload sensing
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Certified load sensor
  • Automatic 25 amp battery charger

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease and buy from Hire Safe Solutions Ltd in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.
