JLG 660SJC

JLG 660SJC

JLG 660SJC

Specification

Make
Make
JLG
Model
Model
660 SJC
Working Height
Working Height
22.32m / 73ft 3in
Platform Height
Platform Height
20.32m / 66ft 9in
Maximum Outreach
Maximum Outreach
17.3m / 56ft 10in
Min Weight
Min Weight
12,300.00kg / 27,183lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs
Machine Length
Machine Length
10.84m / 35ft 7in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.56m / 8ft 5in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
55%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a JLG 660SJC?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

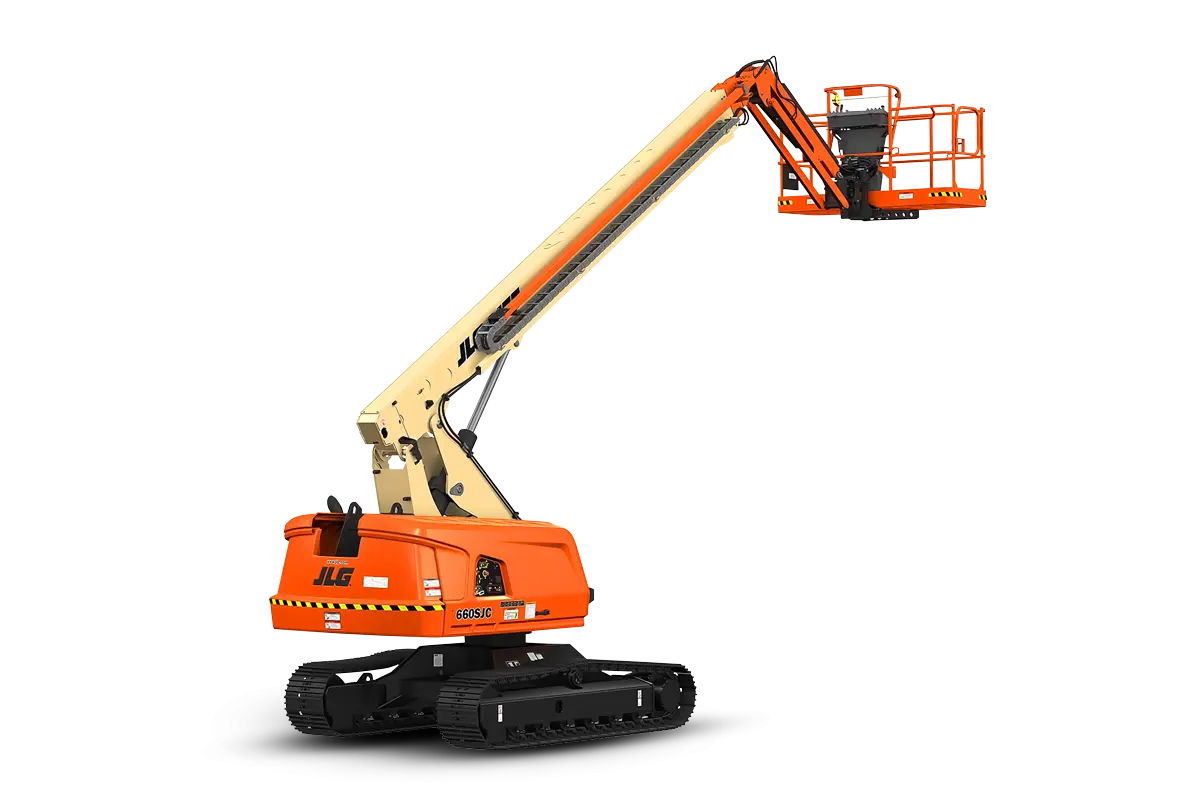

JLG 660SJC Extreme Terrain Vehicle

The JLG 660SJC Cherry Picker is designed for your toughest jobs and terrains. It offers excellent mobility and a single drive/steer joystick for one-handed operation. This machine comes equipped with zero turning radius which makes it easier to manoeuvre around the job site. It also offers a large working height of 22.32m as well as a maximum outreach of 17.3m.

Key Features of the JLG 660SJC

  • 0.91m x 1.83m low mount platform
  • Side entry with inward swing gate
  • Multiple function operation
  • Full proportional drive joystick control with integral thumb steer switch
  • Full proportional main boom and swing joystick control
  • Variable speed dial control for telescope and platform rotate
  • Selectable creep speed on drive / lift and swing functions
  • 1.83m articulating jib
  • 180° powered platform rotator
  • Platform console machine status light panel
  • Load sensing system
  • AC cable to platform
  • Deutz D2011L04 (47 kW) diesel engine
  • Engine distress warning/shut down system
  • Gull-wing hoods
  • Swing-out engine tray
  • Spark arresting type muffler
  • Control ADETM - Advanced Design
  • Electronics System
  • Hydrostatic drive transmission
  • Horn
  • 3° tilt alarm and indicator light
  • Steel tracks
  • Fixed-width frame (extending axles not required)
  • Lifting/tie down lugs
  • Ground control selector switch with key lock
  • Platform tool tray
  • 12V DC auxiliary power

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Extreme Terrain Vehicles here.

  • Sloping or difficult terrain
  • Working on grass
  • Electricity pylons
  • Soft or wet terrain

The JLG 660SJC can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Nappies

Nappies
Onboard Generator

Onboard Generator

The JLG 660SJC comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Tracks

Tracks
Power to Platform

Power to Platform
