Jibbi 1670 EVO

Jibbi 1670 EVO

Jibbi 1670 EVO

Specification

Make
Make
Jibbi
Model
Model
1670 EVO
Working Height
Working Height
16m / 52ft 6in
Platform Height
Platform Height
14m / 46ft
Maximum Outreach
Maximum Outreach
8.5m / 27ft 11in
Min Weight
Min Weight
3,850.00kg / 8,509lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs
Machine Length
Machine Length
5.1m / 16ft 9in
Machine Width
Machine Width
1.35m / 4ft 6in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel
Gradeability
Gradeability
25%
Cage Rotation
Cage Rotation
140 degrees

Interested in hiring a Jibbi 1670 EVO?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Jibbi 1670 EVO Extreme Terrain Vehicle

The Jibbi 1670 EVO Cherry Picker represents the evolution of the JT series, not only in terms of working height but also in terms of technology, versatility and innovation. This MEWP stands out due to its maximum working height of 16m and an impressive operating reach that ranges from 6.7 to 8.5m, providing the possibility for the operator to travel up to a moving height of 9m.

The Jibbi 1670 EVO includes dynamic and proactive automatic levelling, a dynamic working performance and a safe-lock system, ultrasonic anti-collision system and a tracked design, offering superior stability and traction on rough or uneven surfaces. Its compact and flexible telescopic boom make it ideal for navigating tight spaces and complex jobs.

Key Features of the Jibbi 1670 EVO

  • Working Height: Up to 16m
  • Horizontal Reach: 6.7m (230kg load)
  • Max Horizontal Reach: 8.5m (80kg load)
  • Power Source: Reliable diesel engine for robust performance
  • Tracked Design: Superior stability and traction on rough terrain
  • Automatic Levelling System: Ensures safe operation on uneven surfaces

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Slopes, both internal and external
  • Muddy, soft ground
  • Tunnelling
  • Horticulture
  • Arboriculture

The Jibbi 1670 EVO can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Telematics

Telematics
Harness

Harness
Tool Tethers

Tool Tethers
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Nappies

Nappies

The Jibbi 1670 EVO comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Non-Marking Tracks

Non-Marking Tracks

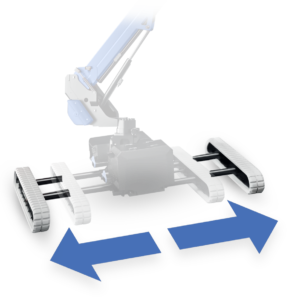

Resizable Undercarriage

Resizable Undercarriage

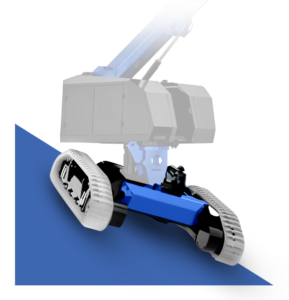

Automatic Levelling

Automatic Levelling

Interested in hiring a Jibbi 1670 EVO?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
