Almac BIBI 1490

Almac BIBI 1490

Almac BIBI 1490

Specification

Make
Make
Almac
Model
Model
BIBI 1490
Working Height
Working Height
14m / 46ft
Platform Height
Platform Height
12m / 39ft 5in
Min Weight
Min Weight
5,250.00kg / 11,603lbs
Safe Working Load
Safe Working Load
400.00kg / 884lbs
Machine Length
Machine Length
3.02m / 9ft 11in
Machine Width
Machine Width
1.69m / 5ft 7in
Machine Height
Machine Height
3.39m / 11ft 2in
Power Options
Power Options
Diesel, Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
46%

Interested in hiring a Almac BIBI 1490?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

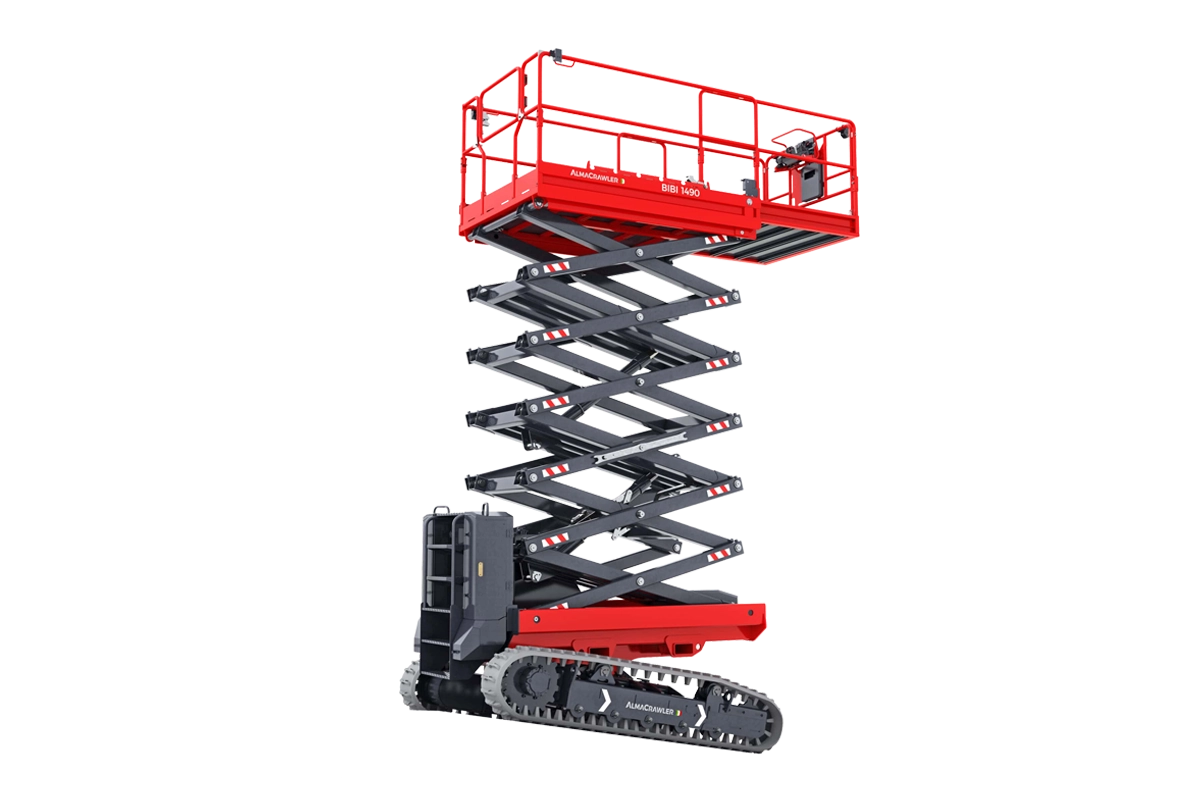

Almac BIBI 1490 Extreme Terrain Vehicle

The Almac BIBI 1490 tracked scissor lift offers a working height of 14m and is capable of lifting up to 400kg. The bi-levelling undercarriage allows it to operate on uneven terrain with front and rear longitudinal levelling up to +/- 15° and lateral levelling up to +/- 14°, and can even be driven when elevated to 9.2m.

The Almac BIBI 1490 comes in two variants - the BIBI 1490 EVO, which is powered by a diesel engine; and the BIBI 1490 PRiMO, which features a powerful lithium powerpack.

Key Features of the Almac BIBI 1490

  • Maintenance-free ATS track tensioning system
  • 400kg Lift Capacity
  • Automatic basket levelling and Bi-levelling undercarriage
  • Max moving height of 9.2m
  • 46% Gradeability
  • AES anti-entrapment system
  • 1.15m extension deck

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Extreme Terrain Vehicles here.

  • Slopes – both internal and external
  • Muddy, soft ground
  • Tunnelling
  • Horticulture
  • Arboriculture

The Almac BIBI 1490 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Telematics

Telematics
Tool Tethers

Tool Tethers
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Nappies

Nappies
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Transformer & Lead

Transformer & Lead

The Almac BIBI 1490 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Lithium-ion Battery

Lithium-ion Battery
Non-Marking Tracks - SL

Non-Marking Tracks - SL
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
Power to Platform

Power to Platform
Variable Undercarriage

Variable Undercarriage

Interested in hiring a Almac BIBI 1490?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
