Aichi SR12 C1SM

Aichi SR12 C1SM

Aichi SR12 C1SM

Specification

Make
Make
Aichi
Model
Model
SR12 C1SM
Working Height
Working Height
14.1m / 46ft 4in
Platform Height
Platform Height
12.1m / 39ft 9in

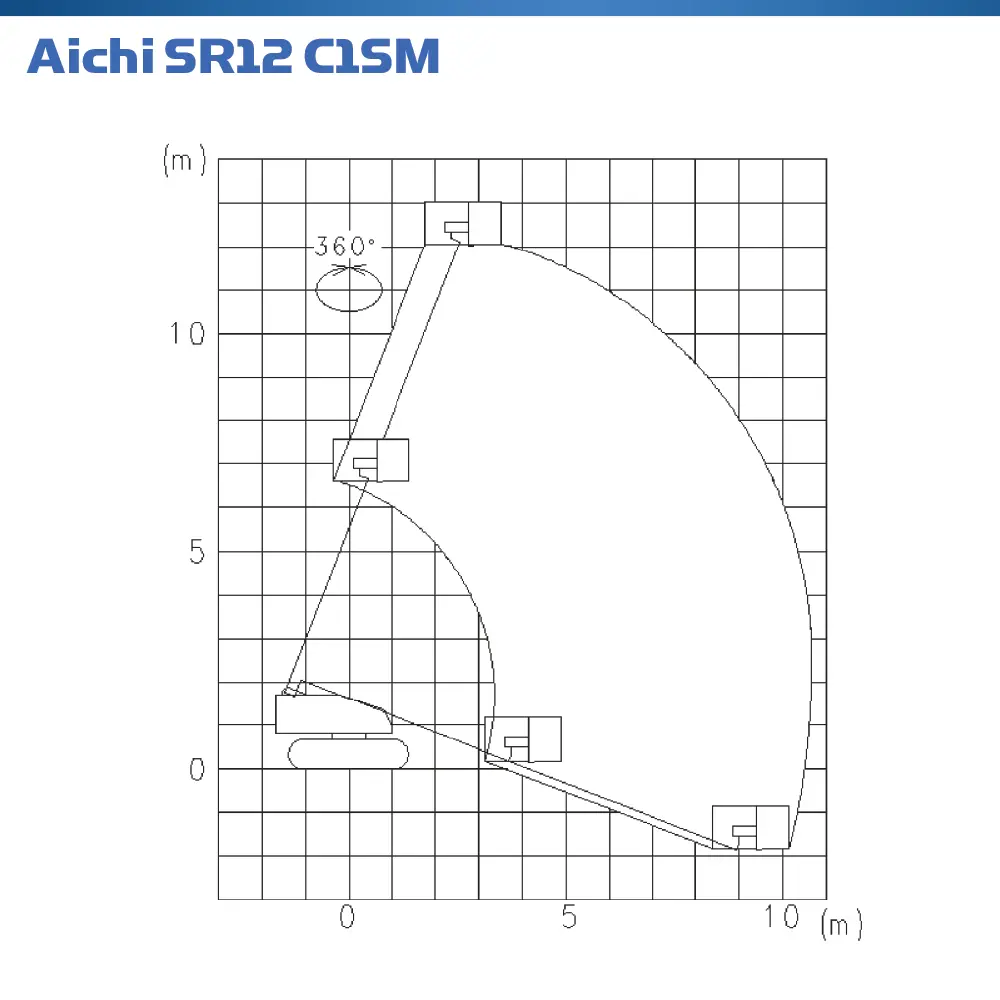

Maximum Outreach
Maximum Outreach
10.7m / 35ft 2in
Min Weight
Min Weight
7,500.00kg / 16,575lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs
Machine Length
Machine Length
6.34m / 20ft 10in
Machine Width
Machine Width
2.25m / 7ft 5in
Machine Height
Machine Height
2m / 6ft 7in
Power Options
Power Options
Diesel
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Aichi SR12 C1SM?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

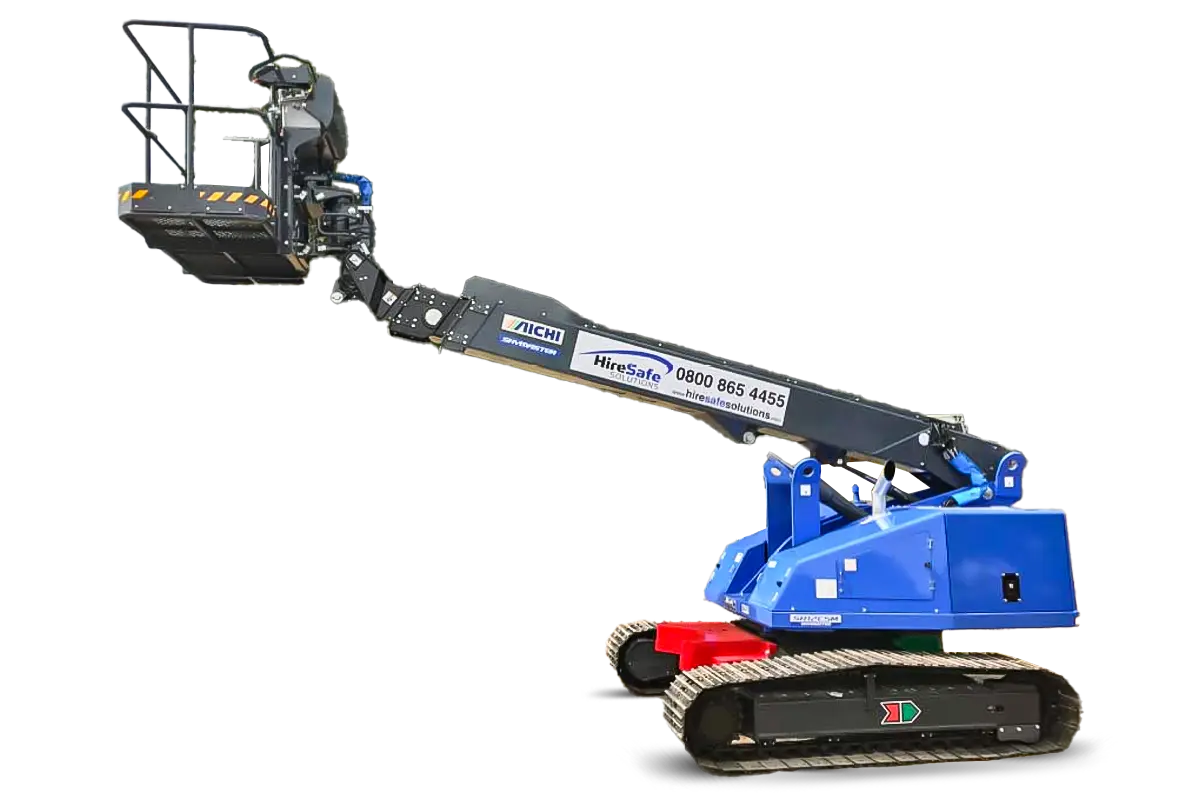

Aichi SR12 C1SM Extreme Terrain Vehicle

The Aichi SR 12C1SM Crawler Boom Lift/Cherry Picker is well suited for both construction and maintenance work and can handle some of the toughest conditions. This MEWP offers a wide working range, excellent manoeuvrability as well as smooth operation. The Aichi track system also allows for a very low ground pressure which enables the machine to travel on soft surfaces, where wheeled machines cannot go. The Aichi SR 12C1SM has a 14.1m working height and an outreach of 10.7m.

Key Features of the Aichi SR12 C1SM

  • Steel tracks for excellent terrainability on uneven and soft ground
  • Sandblast shielding
  • Motion alarm on all functions
  • Cover above operation controls

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Overhead power line installation, maintenance and repair
  • Slopes, both internal and external
  • Muddy, soft ground
  • Tunnelling
  • Horticulture
  • Arboriculture
  • Estate management

The Aichi SR12 C1SM can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Telematics

Telematics
Harness

Harness
Tool Tethers

Tool Tethers
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Nappies

Nappies

The Aichi SR12 C1SM comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered

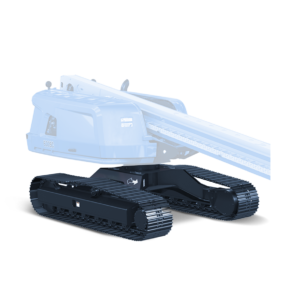

Tracks

Tracks
