Sinoboom AB14EJ

Sinoboom AB14EJ

Sinoboom AB14EJ

Specification

Make
Make
Sinoboom
Model
Model
AB14EJ
Working Height
Working Height
16m / 52ft 6in
Platform Height
Platform Height
14m / 46ft
Maximum Outreach
Maximum Outreach
7.6m / 25ft
Min Weight
Min Weight
7,160.00kg / 15,824lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs
Machine Length
Machine Length
6m / 19ft 9in
Machine Width
Machine Width
1.73m / 5ft 9in
Machine Height
Machine Height
2m / 6ft 7in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
1.15m / 3ft 10in
Gradeability
Gradeability
30%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a Sinoboom AB14EJ?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

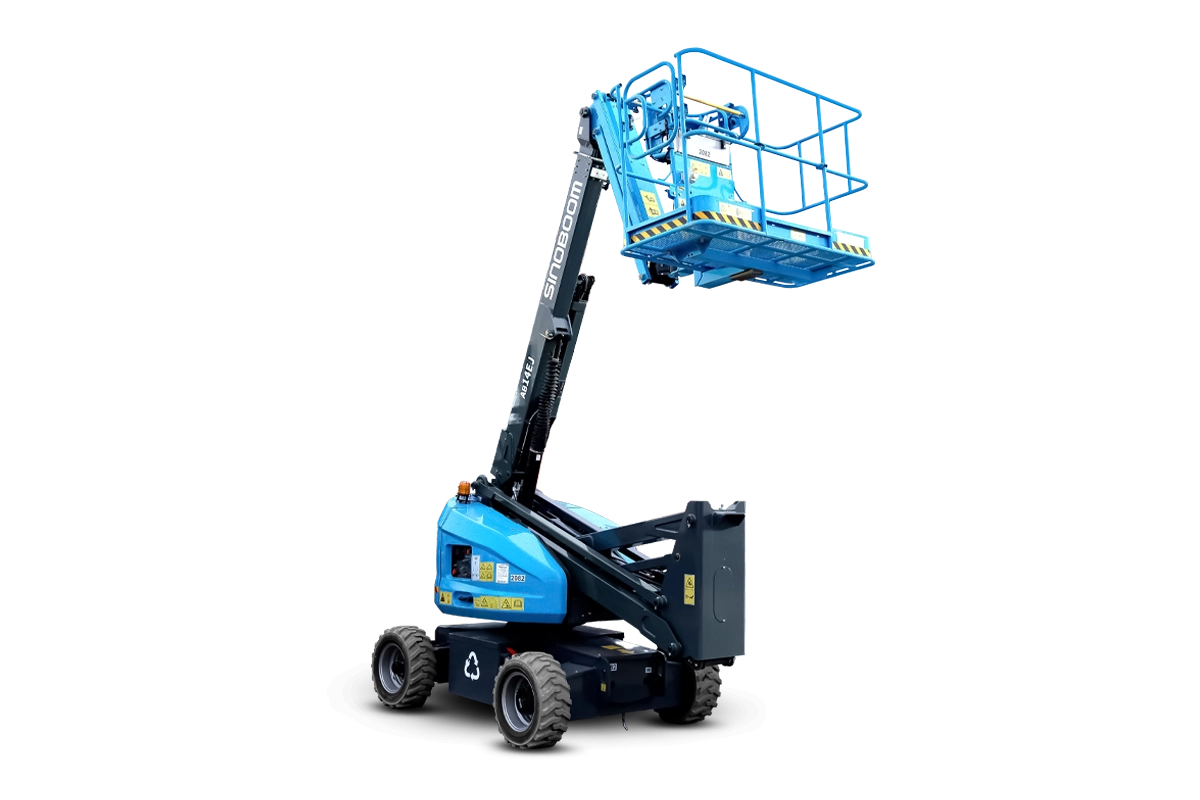

Sinoboom AB14EJ (AB460EJ) Electric Articulated Cherry Picker

The Sinoboom AB14EJ electric articulated cherry picker - also known as the AB460EJ - is perfect for working in narrow spaces thanks to its compact width of 1.73m and internal turning radius of just 1.15m. It offers a 16m working height and a max platform capacity of 230kg. Designed with a narrow chassis and lower stowed height, it is capable of passing through standard doorways and travelling in narrow aisles both indoors and outdoors. The Sinoboom AB14EJ offers completely emission-free operation, powered by AGM maintenance-free batteries which provide a long cycle life and no worries of maintenance decreasing TCO.

As with all of our boom lifts for hire, the AB14EJ is equipped with a range of cutting-edge safety devices including secondary guarding, flashing beacons and an auxiliary emergency lowering system which will safely bring the platform to the ground in the event of a main power failure.

Key Features of the Sinoboom AB14EJ

  • 5 inch LED screen
  • 2WD x 2WS
  • Electrical emergency lowering system
  • Proportional control with 2 joysticks
  • Weighing system
  • Hydraulic platform levelling
  • Max tilt rating to 5°
  • Emergency stop system
  • Horn & buzzer
  • Fault diagnosis system
  • Flashing beacon
  • Manual storage box
  • Tilt protection system
  • Foam-filled non-marking tires
  • AC power to platform
  • Secondary guarding device

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Super Boom Lifts here.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation, and repair tasks
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing, and facility inspections
  • Event Management: Well-suited for event setup and maintenance tasks, including lighting, signage, and rigging installations
  • Utility Work: Versatile enough to handle utility maintenance, tree trimming, and outdoor landscaping projects with ease

The Sinoboom AB14EJ can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Sinoboom AB14EJ comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Power to Platform

Power to Platform
Non-Marking Rough Terrain Tyres

Non-Marking Rough Terrain Tyres
