Sinoboom AB10ERJN

Sinoboom AB10ERJN

Sinoboom AB10ERJN

Specification

Make
Make
Sinoboom
Model
Model
AB10ERJN
Working Height
Working Height
11.62m / 38ft 2in
Platform Height
Platform Height
9.62m / 31ft 7in
Maximum Outreach
Maximum Outreach
6.3m / 20ft 9in
Min Weight
Min Weight
6,760.00kg / 14,940lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

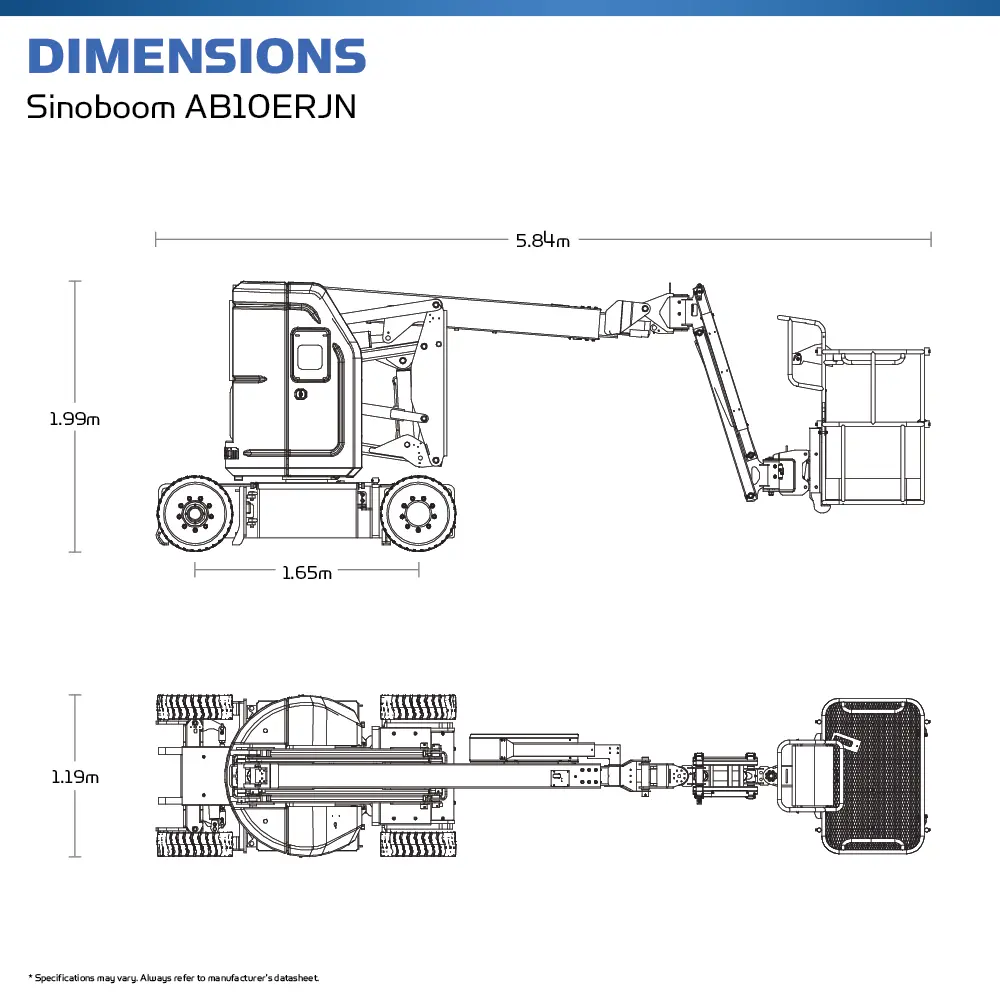

Machine Length
Machine Length
5.84m / 19ft 2in
Machine Width
Machine Width
1.19m / 3ft 11in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
1.7m / 5ft 7in
Gradeability
Gradeability
35%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Sinoboom AB10ERJN?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Sinoboom AB10ERJN (AB320ERJN) Electric Articulated Cherry Picker

The Sinoboom AB10ERJN electric articulated cherry picker - also known as the AB320ERJN - is a versatile and efficient solution for elevated tasks, perfect for navigating through confined spaces or reaching over obstacles. It's designed to deliver reliable and precise performance for a wide range of elevated tasks.

With a working height of 11.62m, horizontal outreach of 6.3 and a max Up and Over Clearance of 4.63m, the Sinoboom AB10ERJN provides access to elevated work areas with ease. In its stowed position, it boasts a compact footprint of just 5.84m in length, 1.19m in width, and 1.99m in height, allowing it to be manoeuvred comfortably through tight spaces.

Key Features of the Sinoboom AB10ERJN

  • Sinoboom family control system (Rexrot, ground and platform), compliant with ISO13849 PLd (safe and reliable)
  • 1.19m narrow chassis and 1.99m stowed height, zero tailswing (suitable for confined spaces)
  • Hydraulic platform levelling
  • Automatic pothole guard
  • Proportional controls
  • Electrical emergency lowering system
  • 5 inch LED screen
  • 2WD × 2WS
  • Tilt rating up to 3°
  • Horn & buzzer
  • Fault diagnosis system
  • Platform & jib rotation 180°
  • Tilt protection system
  • Solid non-marking tyres
  • Flashing beacon
  • AGM battery
  • AC power to platform
  • Secondary guarding device

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Super Boom Lifts here.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation, and repair tasks.
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing, and facility inspections.
  • Event Management: Well-suited for event setup and maintenance tasks, including lighting, signage, and rigging installations.
  • Utility Work: Versatile enough to handle utility maintenance, tree trimming, and outdoor landscaping projects with ease.

The Sinoboom AB10ERJN can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Sinoboom AB10ERJN comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Power to Platform

Power to Platform
Non-Marking Tyres

Non-Marking Tyres
