Manitou MAN'GO 12

Manitou MAN'GO 12

Manitou MAN'GO 12

Specification

Make
Make
Manitou
Model
Model
MAN'GO 12
Working Height
Working Height
11.91m / 39ft 1in
Platform Height
Platform Height
9.9m / 32ft 6in
Maximum Outreach
Maximum Outreach
6.19m / 20ft 4in
Min Weight
Min Weight
4,150.00kg / 9,172lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs
Machine Length
Machine Length
5.5m / 18ft 1in
Machine Width
Machine Width
1.8m / 5ft 11in
Machine Height
Machine Height
2.02m / 6ft 8in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
1.71m / 5ft 8in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
136 degrees

Interested in hiring a Manitou MAN’GO 12?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

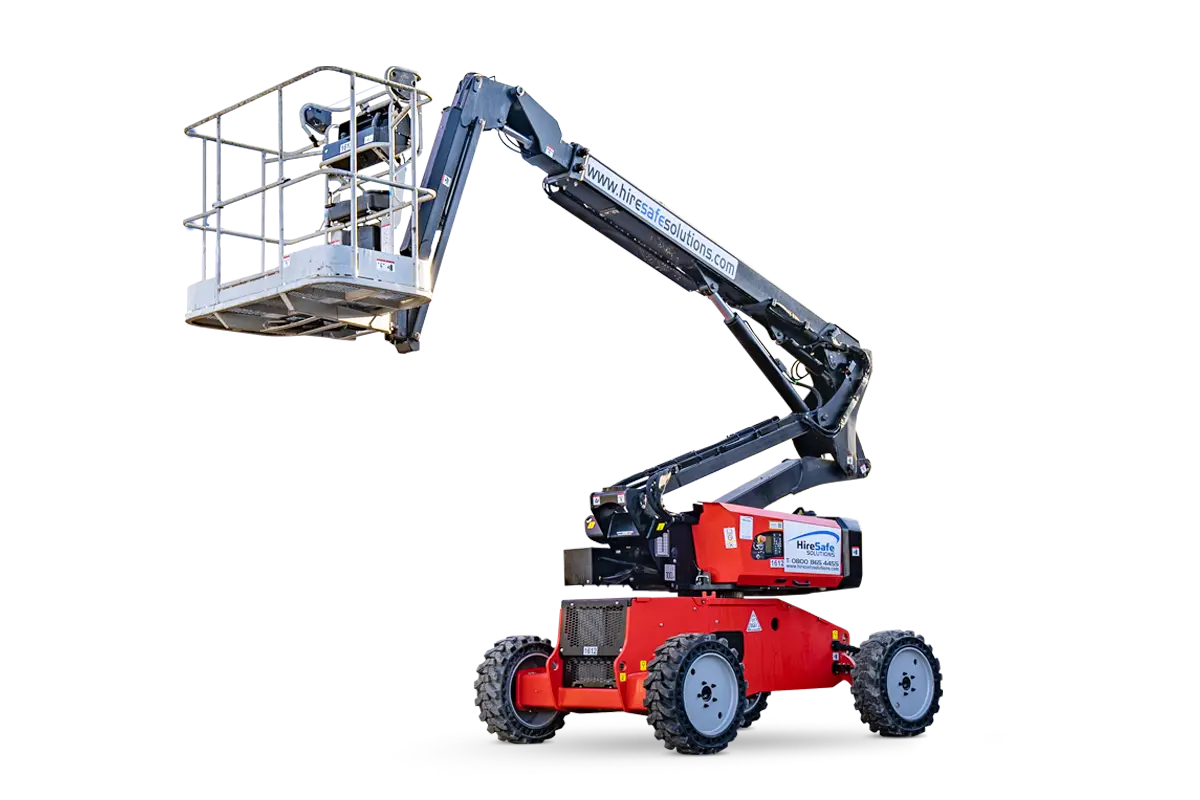

Manitou MAN'GO 12 Diesel Cherry Picker

The Manitou MAN'GO 12 is an articulated diesel cherry picker which offers great performance in a range of different applications. It features an 11.91m working height, 6.19m outreach and has a platform capacity of 230kg, suitable for 2 occupants both indoors and outdoors. The compact design of the Manitou MAN'GO 12 allows for easy positioning in tight spaces, and the powerful 4 wheel drive and solid rough terrain tyres make it perform exceptionally well on challenging terrains.

The Manitou MAN'GO 12 features a 1.46m jib with 134° of vertical rotation, as well as a spacious 1.5m x 0.98m platform with 136° of horizontal rotation, allowing it to be manoeuvred with ease in narrow environments. Productivity is further increased thanks to its ability to perform 3 simultaneous movements.

It comes equipped with a powerful yet efficient Stage V engine, meaning it can be used on sites with strict emission regulations.

Key Features of the Manitou MAN'GO 12

  • 4 wheel drive, rough terrain use
  • Small size and ergonomic driving position allows for easy movement within cramped sites
  • Ease of operation with smooth and simultaneous movements
  • 125o basket rotation for precise positioning
  • Enhanced visibility with narrow turret width

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The Manitou MAN'GO 12 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Manitou MAN'GO 12 comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Oscillating Axles

Oscillating Axles
Four Wheel Drive

Four Wheel Drive
Stage V Engine

Stage V Engine
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
