Manitou 220TJ

Manitou 220TJ

Manitou 220TJ

Specification

Make
Make
Manitou
Model
Model
220TJ+

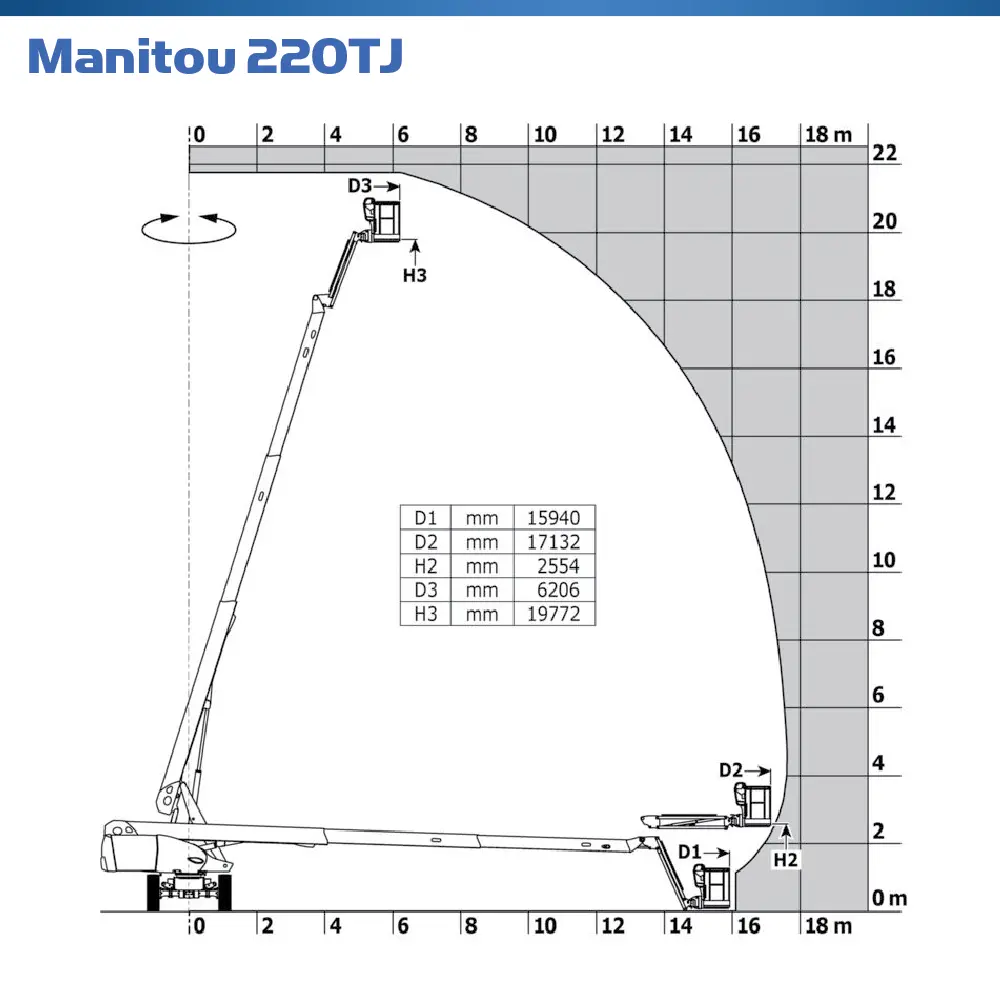

Working Height
Working Height
21.74m / 71ft 4in
Platform Height
Platform Height
19.74m / 64ft 10in
Maximum Outreach
Maximum Outreach
17.79m / 58ft 5in
Min Weight
Min Weight
13,600.00kg / 30,056lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs
Machine Length
Machine Length
7.35m / 24ft 2in
Machine Width
Machine Width
2.48m / 8ft 2in
Machine Height
Machine Height
3.03m / 10ft
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
2m / 6ft 7in
Gradeability
Gradeability
40%
Cage Rotation
Cage Rotation
90 degrees

Interested in hiring a Manitou 220TJ?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

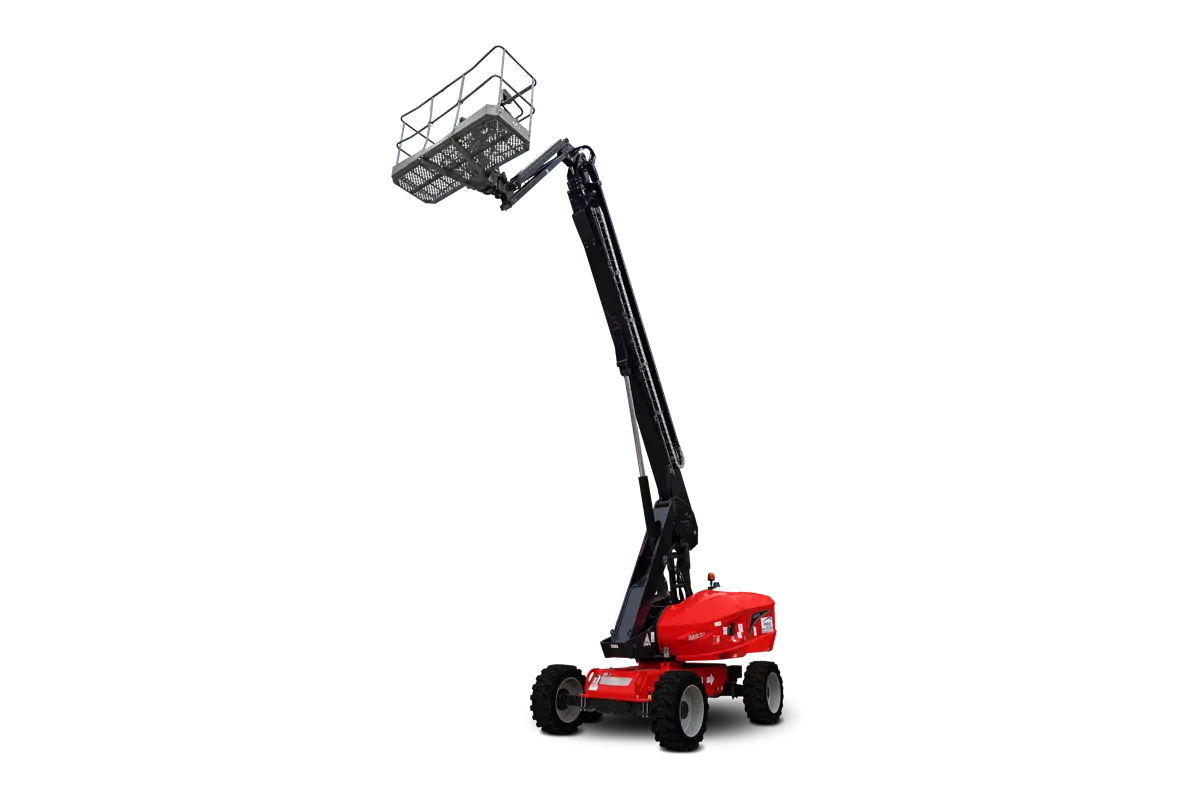

Manitou 220TJ Cherry Picker

The Manitou 220TJ Cherry Picker offers a working height of 21.74m and working outreach of 17.79m. The basket of this machine also offers a capacity of 400kg, to allow up to 2 operators to work on the platform, and is equipped with tool storage as well as a mesh floor to improve visibility during operations. This machine offers a  pivoting structure which allows for rapid movement whilst the controls precision and rod end dampening when stopping, provide the operators with greater comfort. As with most Manitou machines this telescopic platform is four wheel drive and offers a generous ground clearance for optimal rough terrain use.

Key Features of the Manitou 220TJ

  • Standard
  • 230V Predisposition
  • 4 simultaneous movements
  • 4 wheel drive
  • Audible alarm and illuminated indicator lamp (leveling, overload, lowering)
  • Backup electrical pump
  • Connected machine
  • Continuous turret rotation
  • Differential locking on rear axle
  • Easy fast slinging system
  • Electronic platform compensation
  • Emergency stop button in platform and on frame
  • Engine mounted on sliding platform
  • Engine with DPF
  • Front axle with limited slip
  • Fuel gauge with low level indicator
  • Fully galvanized basket with demountable floor
  • Integrated diagnostic assistance
  • LED rotating beacon
  • LS pump
  • Large color screen on turret
  • Leveling unlocking
  • Oscillating front axle
  • Proportional controls
  • Stop & Go system

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The Manitou 220TJ can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Manitou 220TJ comes equipped with various features designed to enhance your efficiency and performance on the job.

Crab Steering

Crab Steering
Four-Wheel Steering

Four-Wheel Steering
Diesel Powered

Diesel Powered
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
