Genie Z30 20N RJ

Genie Z30 20N RJ

Genie Z30 20N RJ

Specification

Make
Make
Genie
Model
Model
Z 30 20NRJ
Working Height
Working Height
10.89m / 35ft 9in
Platform Height
Platform Height
8.89m / 29ft 3in

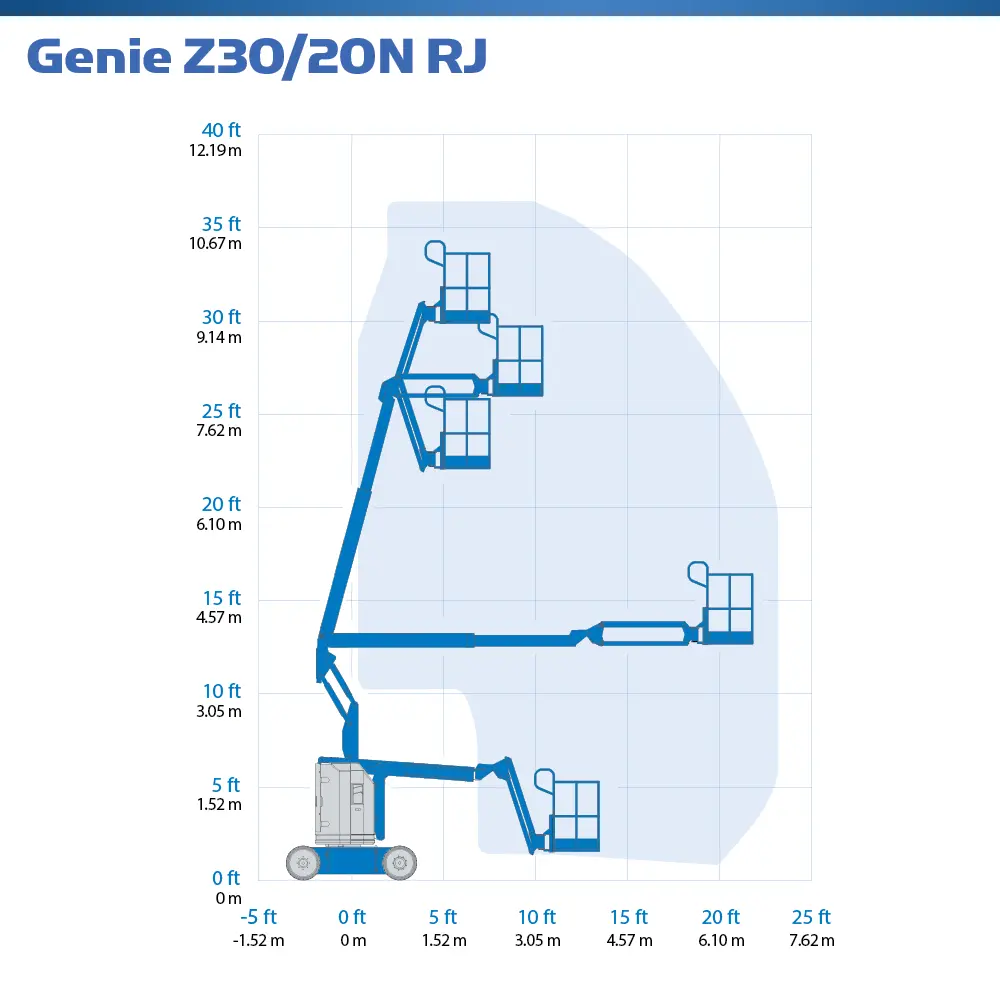

Maximum Outreach
Maximum Outreach
6.25m / 20ft 7in
Min Weight
Min Weight
6,605.00kg / 14,597lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs
Machine Length
Machine Length
5.31m / 17ft 6in
Machine Width
Machine Width
1.19m / 3ft 11in
Machine Height
Machine Height
2m / 6ft 7in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
1.65m / 5ft 5in
Gradeability
Gradeability
35%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Genie Z30 20N RJ?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Genie Z30 20N RJ Cherry Picker

The Genie Z30 20N RJ Electric Boom Lift is an ultra narrow, Electric articulating Boom Lift/Cherry Picker which comes equipped with an oscillating jib that offers ease of access to those difficult to reach areas with a working height of 10.89m and a safe working load of 227kg.

Ideal for indoor use, where it's overall narrow design, zero tail swing, reduced noise and emissions make it the perfect partner for applications including building maintenance, electrical contractor jobs, CCTV installation, and other types of industrial operations carried out in warehouses and factories.  The Genie Z30 20N RJ has a Genie Sep-Ex drive motor and controller which offers a range of benefits to the operator such as improved drive performance as well as automatic braking whilst on hills for optimised safety and operation.

Key Features of the Genie Z30 20N RJ

  • Perfect for narrow & confined spaces due to zero tail swing or front arm swing
  • Rotating jib offers 180˚ horizontal rotation for enhanced access and improved range of motion
  • Automatic braking when on slopes for extra safety
  • Compact design and chassis for access to narrow spaces
  • 35% gradeability
  • Non marking tyres
  • Quiet operation

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • Indoor use
  • Narrow aisle

The Genie Z30 20N RJ can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Genie Z30 20N RJ comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
