Bronto Skylift S104HLA

Specification

Make

Bronto

Model

Skylift S104HLA

Working Height

104m / 341ft 3in

Platform Height

102m / 334ft 8in

Maximum Outreach

33m / 108ft 4in

Min Weight

62,000.00kg / 137,020lbs

Safe Working Load

600.00kg / 1,326lbs

Machine Length

16.3m / 53ft 6in

Machine Height

4m / 13ft 2in

Power Options

Diesel

Cage Rotation

170 degrees

Interested in hiring a Bronto Skylift S104HLA?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

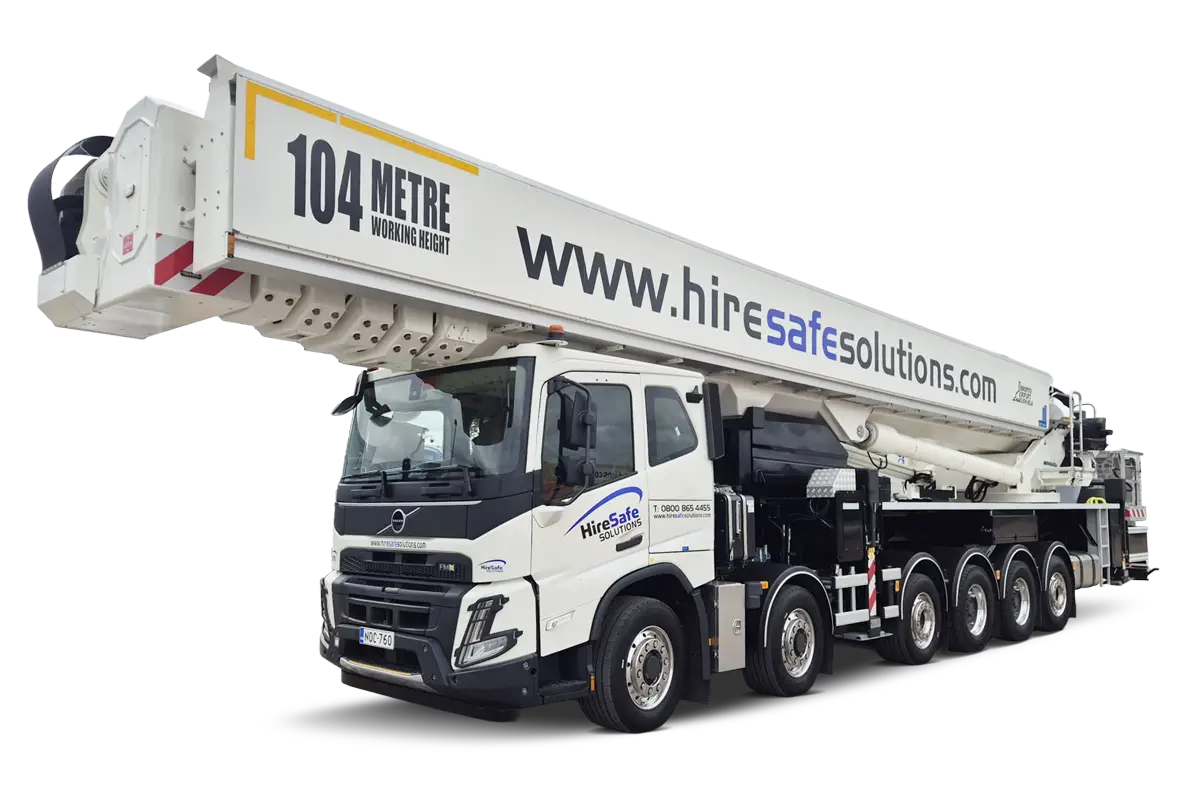

Bronto Skylift S104HLA Vehicle Mounted Platform

The Bronto Skylift S104HLA is the tallest truck mounted platform in the UK, offering the best height-to-weight ratio on the market. The S104HLA provides secure stability and easy manoeuvrability in challenging environments with an incredible working height up to 104m and a working outreach up to 33m. Ideal for extremely high-rise installations like antennas, generators and wind turbines.

Even at maximum height or outreach, this machine has unmatched stability. It's platform measures 2.4m long x 1.1m wide and can be extended to 3.7m in length offering ample room for increased productivity. In addition to its steady cage, the Skylift S104HLA includes the Bronto+ control system, which provides precise and stable movements and is very simple and smooth to operate. Thanks to the geometry-based, fully automatic outreach control system, you can have peace of mind knowing your operative's safety is taken care of.

Key Features of the Bronto Skylift S104HLA

Working height 104m
Working outreach up to 33m
Maximum cage load of 600kg
Working cage 2.4 x 1.1m with additional 1.3m extending deck
Easy to use and precise Bronto+ control system
Extremely reliable outreach, easy to use control system and precise movements
Unmatched cage stability at maximum height
Short overhang, excellent approach angles and an efficient height-to-weight (GVW) ratio
Super fast and simple setup within minutes
Full lower control station at the turntable
Continuous rotation 360°
Safety harness attachment points (4pc) according to EN795
Intercom between the cage and ground control station
Hydraulic outlets in the cage
Hydraulic pump driven by chassis' PTO (Power Take-Off)
Automatic fully variable jacking

An experienced IPAF trained operator will be supplied when hiring this machine. Our trained operators handle everything from setup to operation, allowing you to focus solely on the task itself.

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Vehicle Mounted Platforms here.

General building maintenance
Film/TV work
Window cleaning
Construction
Industries and factories
Airports
Railways
Ventilation systems
Electrical systems
Advertising signs
Guttering
Painting
Lighting
Industrial Maintenance
Assembly
Ports
Pruning
Industrial cleaning
Restorations
Tree Care
Facade Cleaning
Antennas
Generators
Wind Turbine

The Bronto Skylift S104HLA can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks
To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Harness
Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@dev.hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Transformer & Lead
It's essential to fully charge all electric equipment each night in order to get the most out of them and prolong the lifespan of the batteries. Charging facilities on site can often be limited and 110V power may not even be an option. In these cases, our 110V transformers can be used to lower the 240V voltage coming from a standard UK plug socket down to the 110V that is required to safely charge the electric equipment. These can be supplied in 3.3kVA or 5kVA models depending on the type of machine being charged.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Outrigger Pads
Perfect for any equipment fitted with outriggers/jack legs, these outrigger pads help to reduce the high pressures generated on the ground from each outrigger. Most soils and unfinished ground are unable to support these levels of pressure and pose the risk of the MEWP capsizing.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The Bronto Skylift S104HLA comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered
Benefit from uninterrupted work cycles thanks to a powerful yet efficient diesel engine, capable of tackling challenging terrains with ease.
Self-Levelling Jacks
Independent/self-levelling outriggers or jacks allow this machine to really excel on uneven and challenging terrains.
Stage V Engine
This machine is fitted with a powerful yet efficient Stage V engine.

Not only are Stage V engines designed to be more fuel-efficient, but they also emit significantly fewer harmful emissions through the use of advanced technologies like selective catalytic reduction (SCR), diesel particulate filters (DPF), and exhaust gas recirculation (EGR).
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Large Basket
Boost productivity with an increased platform size and multiple entry points, allowing multiple operators to work comfortably, and reducing the need to reposition the platform as often.
Extra Capacity
Featuring multiple load capacities with automatic envelope control, this machine offers an increased SWL by automatically adjusting its working envelope.
360° Continuous Rotation
A powerful rotating component allows for 360° of continuous rotation/slew.
