Hinowa Lightlift 33.17

Hinowa Lightlift 33.17

Hinowa Lightlift 33.17

Specification

Make
Make
Hinowa
Model
Model
33.17
Working Height
Working Height
32.5m / 106ft 8in
Platform Height
Platform Height
30.5m / 100ft 1in
Maximum Outreach
Maximum Outreach
16.5m / 54ft 2in
Min Weight
Min Weight
7,480.00kg / 16,531lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

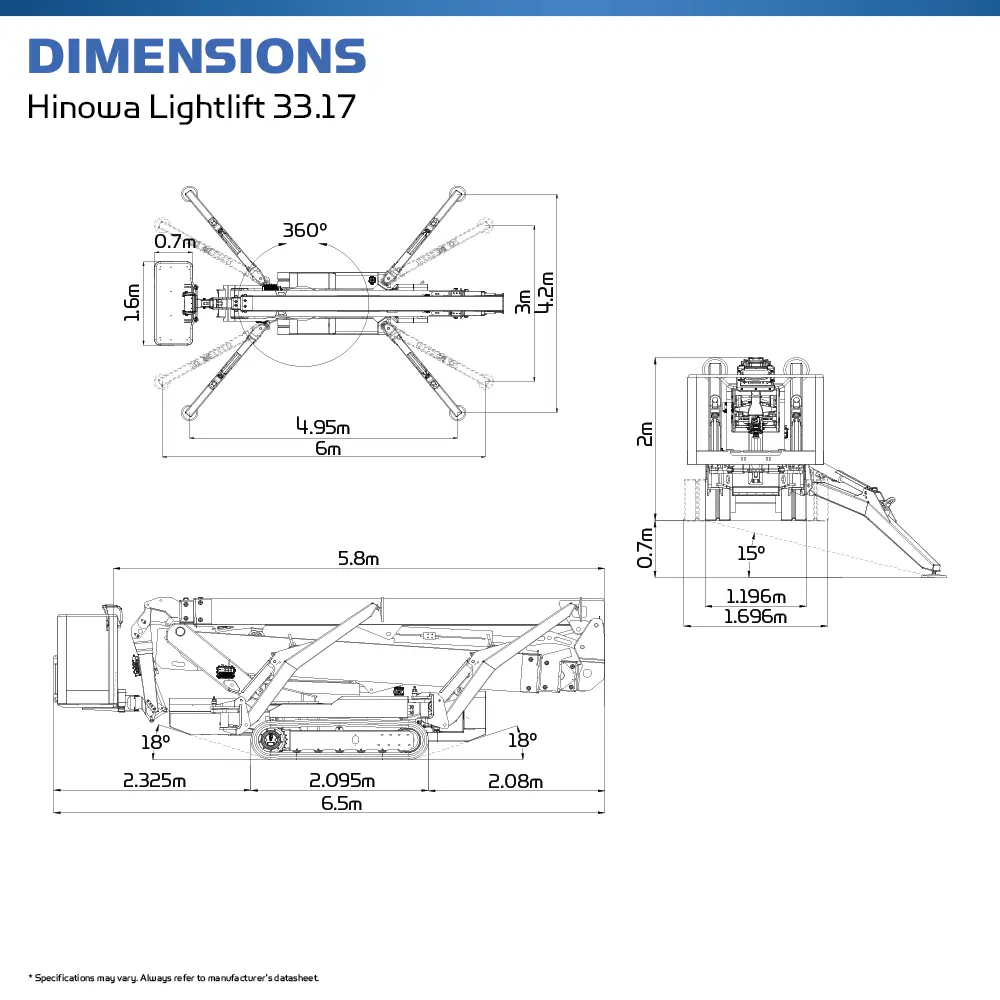

Machine Length
Machine Length
6.5m / 21ft 4in
Machine Width
Machine Width
1.2m / 4ft
Machine Height
Machine Height
1.98m / 6ft 6in
Power Options
Power Options
Diesel, Electric/Battery
Gradeability
Gradeability
28.7%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Hinowa Lightlift 33.17?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

The Hinowa 33.17 Spider Lift is an advanced tracked aerial platform designed for unrivaled height and outreach performances in challenging environments. A working height of 32.5 meters and a maximum outreach of 16.5 meters make this lift ideal for operations in difficult-to-reach areas such as urban locations, industrial settings, and rough-terrain jobs. The platform height of 33 meters enables safe and controlled operations at great heights.

Equipped with the latest in track technology, this spider lift is capable of offering optimal stability and mobility on uneven surfaces. In addition to this, it is extremely compact in design and suitable for confined areas. Having a load capacity of 230kg, the Hinowa 33.17 can be used to support operators and tools or equipment necessary to perform a job.

With the perfect blend of efficiency and safety, it is designed with the latest control systems to offer smooth maneuverability and spot-on positioning. Its automatic outriggers offer dual stabilisation areas, consequently making it extremely stable and suitable for a wide range of applications, from tree trimming to building maintenance and installations.

The Hinowa 33.17 Spider Lift has been developed for those businesses that require a lift marrying flexibility, power, and precision, ensuring reliable, high-output performance whether indoors or outdoors.

Key Features:

  • Anti-entrapment system (safety device and additional protection for the basket operator).
  • “Go home” function with closure and automatic boom alignment.
  • Detachable remote control which ensures utmost comfort during loading/unloading, travel and automatic stabilisation and destabilisation procedures. It is compact, practical, very easy to handle and can be housed inside the control box on the ground.
  • Triple stabilisation area full, reduced or reduced on one side.
  • Automatic assisted stabilisation.
  • Excellent vertical trajectory thanks to the scissor system which allows close wall work with extreme simplicity and precision.
  • Rear basket access with retaining bar and ladder.
  • Double air/water pipe to the basket for use with different work tools (e.g. air).
  • Start & Stop technology (powers the electric motor only when necessary).
  • Automatic shut-down after two hours of idle time.

The high-performance Hinowa Lightlift 33.17 Spider lift is available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call 0800 865 4455 for more information. IPAF Category: Static Boom (1b)

  • Tree pruning
  • Painting
  • Interior and exterior renovations
  • Cleaning
  • Solar panel installation
  • Bridge maintenance
  • Fun fair maintenance
  • Hotel maintenance
  • Sign installation
  • Roof and gutter maintenance
  • Electrical system installation and maintenance

The Hinowa Lightlift 33.17 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Harness

Harness
Outrigger Pads

Outrigger Pads
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Hinowa Lightlift 33.17 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Non-Marking Tracks

Non-Marking Tracks
