LGMG AS1413E

LGMG AS1413E

LGMG AS1413E

Specification

Make
Make
LGMG
Model
Model
AS1413E
Working Height
Working Height
15.8m / 51ft 11in
Platform Height
Platform Height
13.8m / 45ft 4in
Min Weight
Min Weight
3,570.00kg / 7,890lbs
Safe Working Load
Safe Working Load
320.00kg / 707lbs

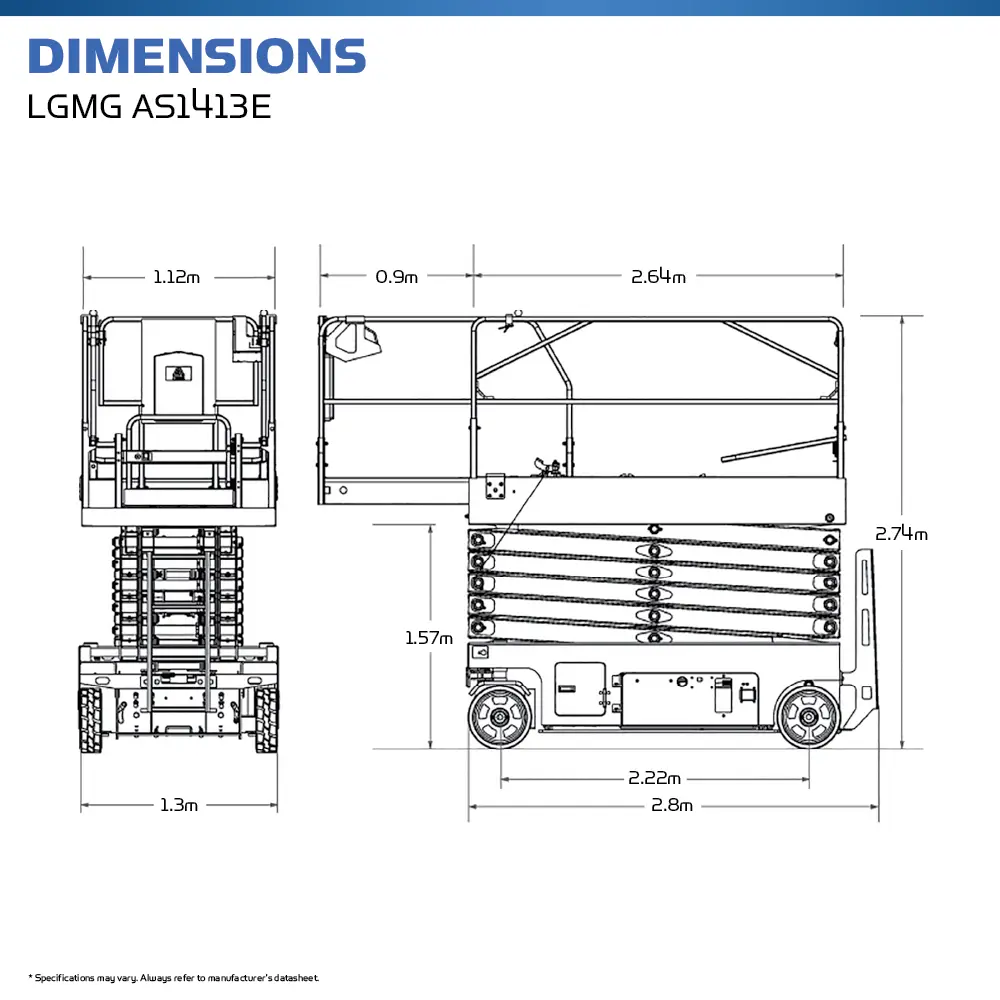

Machine Length
Machine Length
2.8m / 9ft 3in
Machine Width
Machine Width
1.3m / 4ft 4in
Machine Height
Machine Height
2.74m / 9ft
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
25%

Interested in hiring a LGMG AS1413E?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

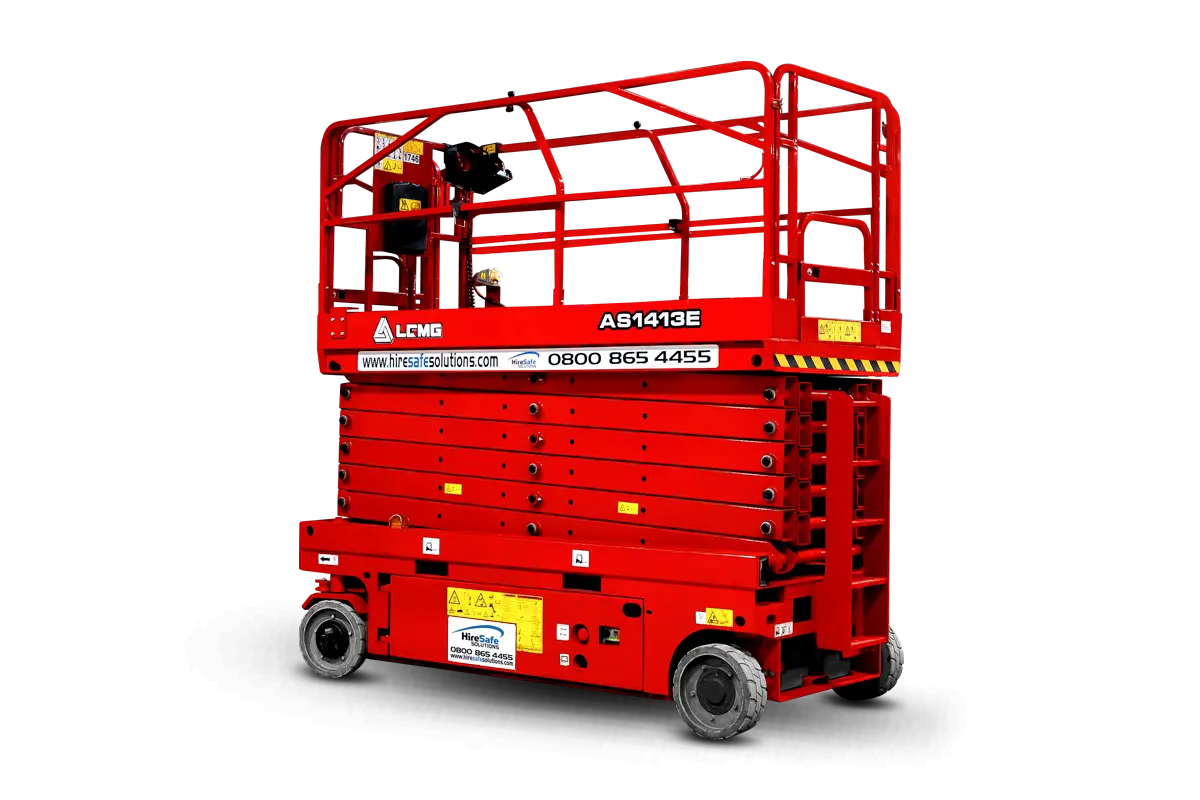

LGMG AS1413E Electric Scissor Lift

The LGMG AS1413E is an electric powered scissor lift with a maximum working height of 15.8m and lift capacity of 320kg, suitable for both internal and external fit-out projects. The LGMG AS1413E features direct drive AC motors that deliver more efficient and longer-lasting performance and an improved gradeability of 25%. Its 2.64m x 1.12m platform and 0.9m extension deck allows up to two personnel to work at height together with tools and materials to maximise productivity. It can be driven at full height and has an inside turning radius of 0m, allowing it to be manoeuvred through tight spaces with ease.

This scissor lift is fitted with proportional controls for drive and lift which allow precise and safe platform positioning, and is combined with practical safety features to protect operatives and the platform.

Key Features of the LGMG AS1413E

  • Efficient AC motor drive system pro­vides longer lasting performance and better gradeability
  • 320kg platform capacity with 0.9m extension deck
  • Battery powered, zero emission and quiet drive mean this machine is envi­ronmentally friendly
  • Proportional controls
  • Foldable guardrails
  • Pothole guards
  • Self-lock entry gates
  • Tilt alarm with lift cut-out
  • Overload sensing system
  • All motions alarm
  • Full-height drive
  • Intelligent diagnostic system

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Internal Fit-Outs
  • Facilities Management
  • General construction
  • Cladding
  • General building maintenance

The LGMG AS1413E can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Small Scissor Pipe Racks

Small Scissor Pipe Racks
Ground Guards

Ground Guards
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Telematics

Telematics

The LGMG AS1413E comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Power to Platform

Power to Platform
Four Wheel Drive

Four Wheel Drive
Non-Marking Tyres

Non-Marking Tyres
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
