Magni RTH 8.39

Magni RTH 8.39

Magni RTH 8.39

Specification

Make
Make
Magni
Model
Model
RTH 8.39
Lifting Height
Lifting Height
38.8m / 127ft 4in
Maximum Outreach
Maximum Outreach
27m / 88ft 7in
Min Weight
Min Weight
24,000.00kg / 53,040lbs
Lifting Capacity
Lifting Capacity
8,000.00kg / 17,680lbs

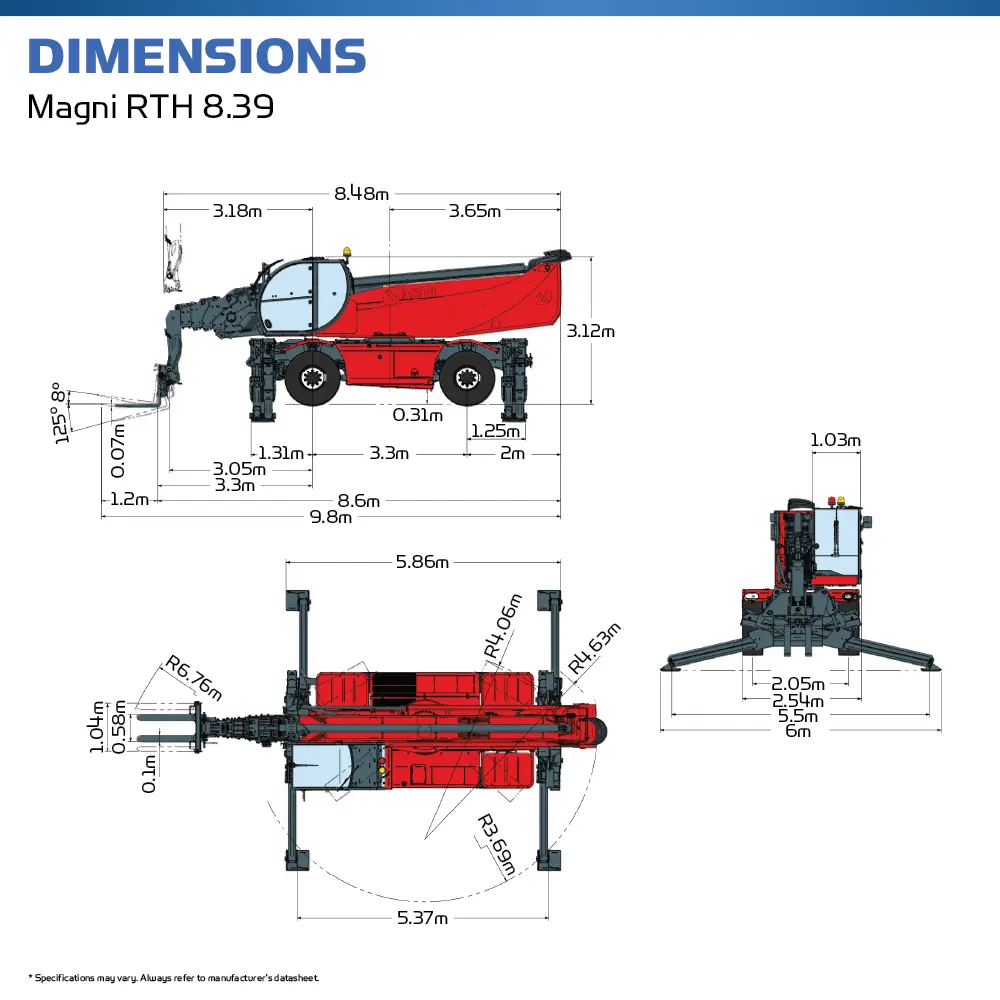

Machine Length
Machine Length
8.6m / 28ft 3in
Machine Width
Machine Width
2.54m / 8ft 5in
Machine Height
Machine Height
3.12m / 10ft 3in
Power Options
Power Options
Diesel
Gradeability
Gradeability
62%
Cage Rotation
Cage Rotation
360 degrees

Interested in hiring a Magni RTH 8.39?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Magni RTH 8.39 Rotating Telehandler

The Magni RTH 8.39 Rotating Telescopic Handler has a maximum lifting height of 38.8m, and can lift loads of up to 8,000kg with a total maximum reach of 27m.

Reliable and rugged, the Magni RTH 8.39 is the perfect partner to tackle even the toughest construction sites with agility and ease of use. No challenge is too complex and safety and precision are assured at even the greatest heights.

The Magni RTH 8.39 is extremely versatile. In addition to the fork carriage that is fitted as standard,  it can also be equipped with various attachments including hooks, winches, jibs and man baskets. What’s more, the machine is able to recognise the various attachments via RFID and automatically set the relevant safety devices and load chart. Equipped with two extension modes, M1 and M2. These two modes give access to two different load charts, to maximise performance in all operating conditions. The standard extension mode, M1, offers the operator the maximum reach and higher load capacities at the maximum height, while M2 mode restricts reach to provide increased load capacity of up to 8000kg.

Operator Comfort and Safety

All panelling is injection-moulded for improved durability and a better finish. Courtesy lights fitted in various points inside the cab switch on when the door is opened. These LED lights can be dimmed and gradually fade out once the machine is switched off. With ROPS/FOPS Level 2 certification, the cab guarantees best-in-class safety throughout all working phases. Visibility is also improved, while maintaining regulatory and safety compliance, by moving the cab further forward, increasing the glazing in the top section and installing a more slender steering column. The new Magni patented “easy access” system makes getting into and out of the cab easier by permitting a slight misalignment between the turret and chassis, facilitating access to the machine.

The air flow inside the cab is optimised to defrost in even the coldest weather. A sunblind which can be locked in two different positions is fitted in the roof, above the operator’s head, to guarantee the highest degree of comfort on even the sunniest days. The armrests, which move with the seat, can be raised, creating a convenient storage compartment underneath the right armrest.

Key Features of the Magni RTH 8.39

  • 12" Touchscreen
  • Magni Combi Touch System on-board control system
  • Automatic RFID tools recognition system
  • Load Moment Indicator
  • Onboard and remote integrated diagnostics
  • Reversing camera with image integrated in the MCTS, activated automatically when reverse gear is engaged
  • Handling mode: allowing boom and traction speeds to be separated for more precise, faster movements when extending the boom while moving the vehicle
  • Eco mode: this allows the engine rpm to be automatically reduced once the maximum speed is reached during on-road travel at constant speed, reducing fuel consumption and thus CO2 emissions
  • Dedicated pre-settings: three new presets which can be selected by the operator, from the most precise to the most reactive, to optimise the performance of the attachment used
  • Magni LLD (Live Load Diagram) system, offers three different versions of the load chart screen for a complete view of the operating limits, to enable work in total safety with Standard, displaying all the load bands, Dynamic, displaying the working area available in relation to the load being lifted and 360°Dynamic, which displays the working area available from above, enabling greater precision when working in conditions of varying stability
  • “Easy access” system
  • Premium tilting seat with air suspension and headrest
  • Adjustable steering column
  • Analogue joypad
  • Adjustable sunblind
  • Heating
  • Air conditioning
  • FM/AM/DAB radio with USB and Bluetooth connectivity
  • Ambient LED lights
  • USB Type-A and Type-C (5V) inputs
  • Q-Fit standard
  • Provision for platform
  • Advanced three-line CAN BUS system
  • Automatic levelling system for outriggers
  • Automatic front and rear wheel alignment
  • High-precision turret rotation motor by Liebherr
  • Automatic parking brake
  • Mechanical battery cut-off in engine compartment
  • Electrical system: 24V – IP67

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Rotating Telehandlers here.

  • Agriculture
  • Building Maintenance
  • Construction
  • Defence
  • Events and Cinemas
  • Forestry
  • Heavy Logistics
  • Mining & Quarrying
  • Oil & Gas
  • Overhead power work
  • Steel Erection
