Magni RTH 5.25

Magni RTH 5.25

Magni RTH 5.25

Specification

Make
Make
Magni
Model
Model
RTH 5.25
Lifting Height
Lifting Height
24.6m / 80ft 9in
Maximum Outreach
Maximum Outreach
19m / 62ft 5in
Min Weight
Min Weight
16,600.00kg / 36,686lbs
Lifting Capacity
Lifting Capacity
4,999.00kg / 11,048lbs

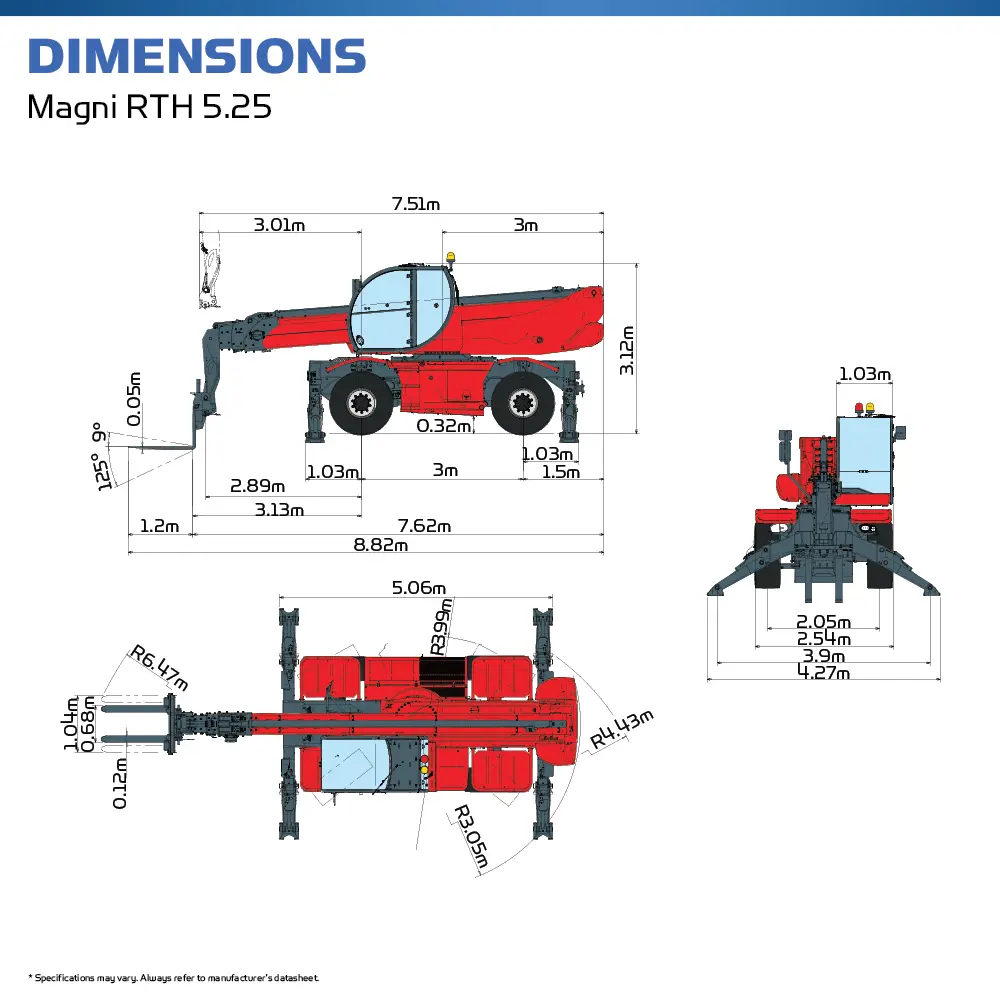

Machine Length
Machine Length
8.82m / 29ft
Machine Width
Machine Width
2.54m / 8ft 5in
Machine Height
Machine Height
3.12m / 10ft 3in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.41m / 21ft 1in
Gradeability
Gradeability
43%
Cage Rotation
Cage Rotation
360 degrees

Interested in hiring a Magni RTH 5.25?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

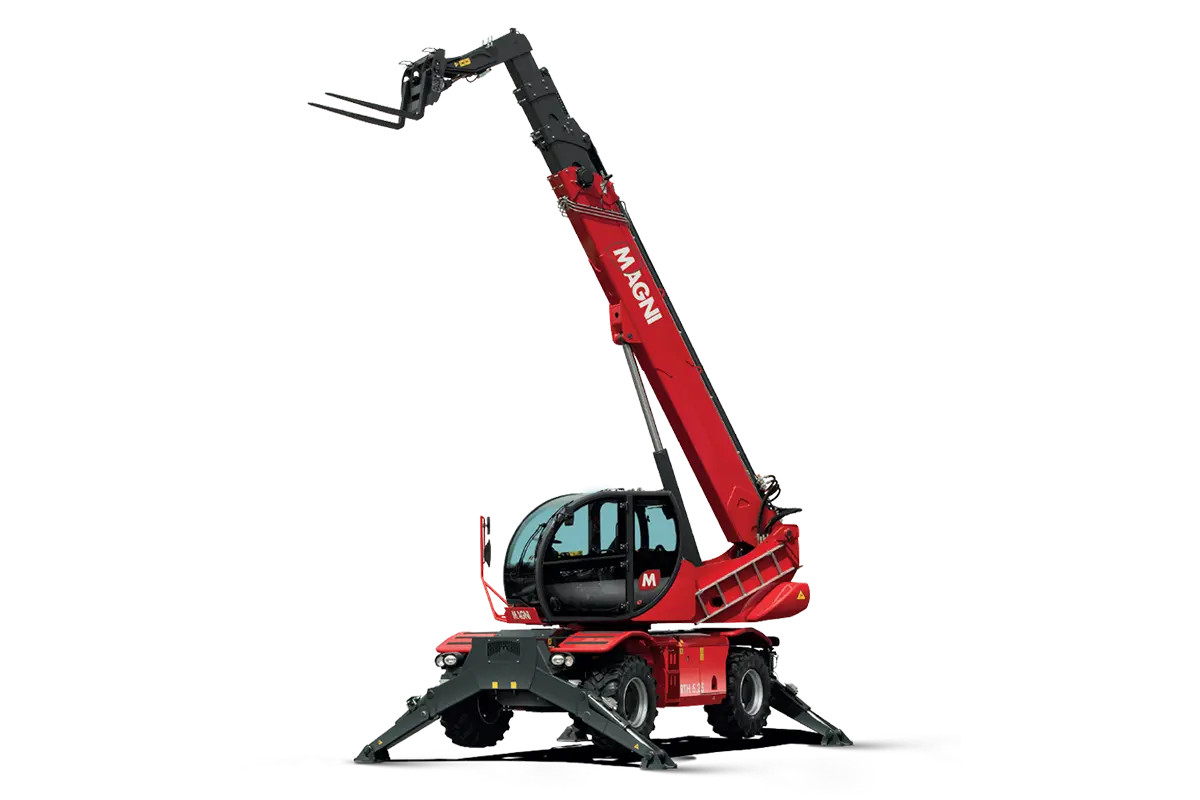

Magni RTH 5.25 Rotating Telehandler

The Magni RTH 5.25 Rotating Telehandler is a compact yet high performance machine capable of lifting loads up to a height of 25m and equipped with scissor stabilisers to ensure greater safety and stability during working manoeuvres. Its scissor stabilisers are ideal when limited space is available and even when only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When fully extended, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base.

The Magni RTH 5.25 meets a very wide range of applications in construction and industry. It's compatible with a huge range of accessories thanks to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts.

Key Features of the Magni RTH 5.25

  • Best in class lifting performance
  • 3 in 1 design provides crane, forklift truck, and safety cage
  • Four wheel drive
  • Hydraulic system
  • Automatic attachment recognition
  • Quick and easy transportation
  • Pleasant work environment
  • 360° rotation for next level access
  • Automatic leveling device
  • Pivoting stabilisers

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Rotating Telehandlers here.

  • Agriculture
  • Building Maintenance
  • Construction
  • Defence
  • Events and Cinemas
  • Forestry
  • Heavy Logistics
  • Mining & Quarrying
  • Oil & Gas
  • Overhead power work
  • Steel Erection
